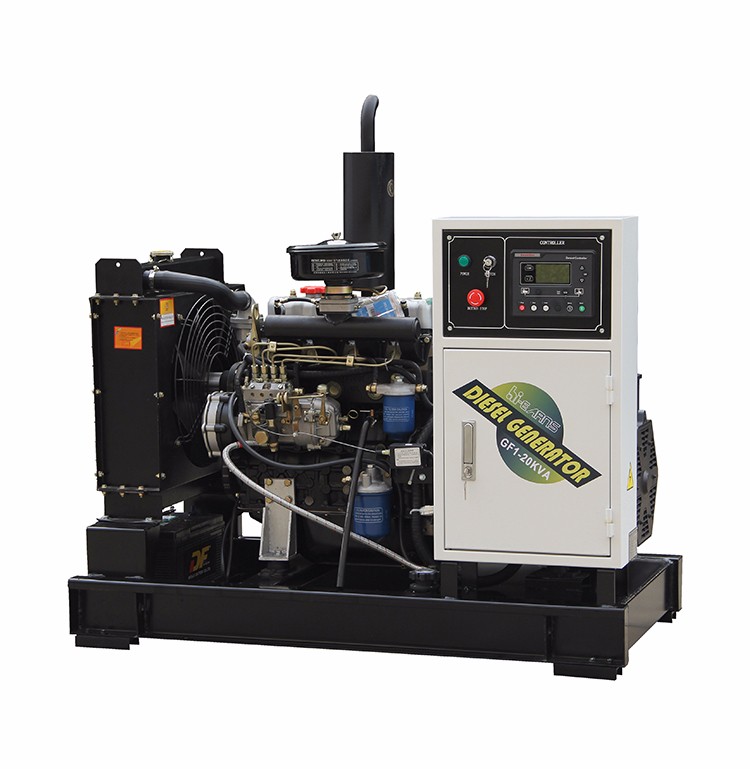

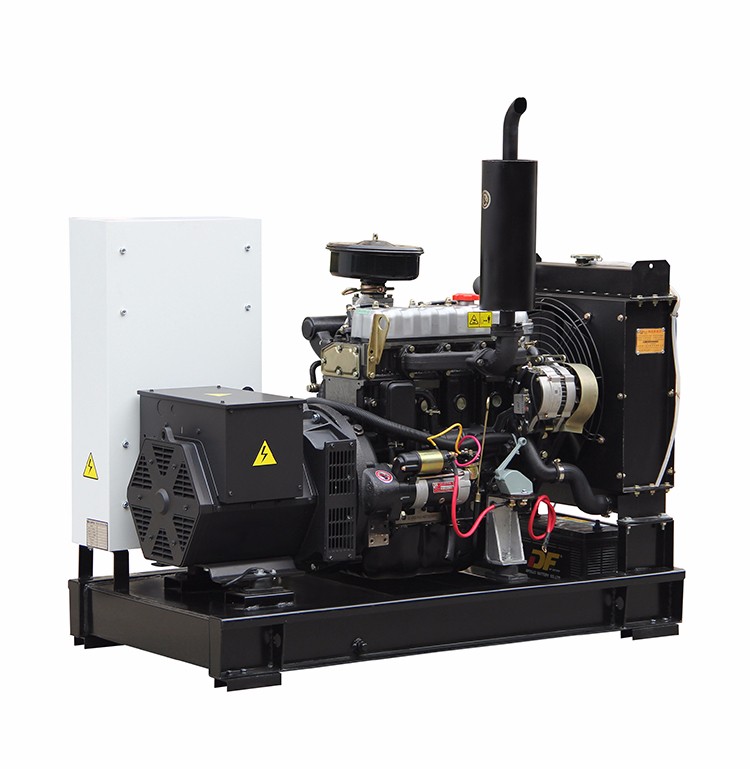

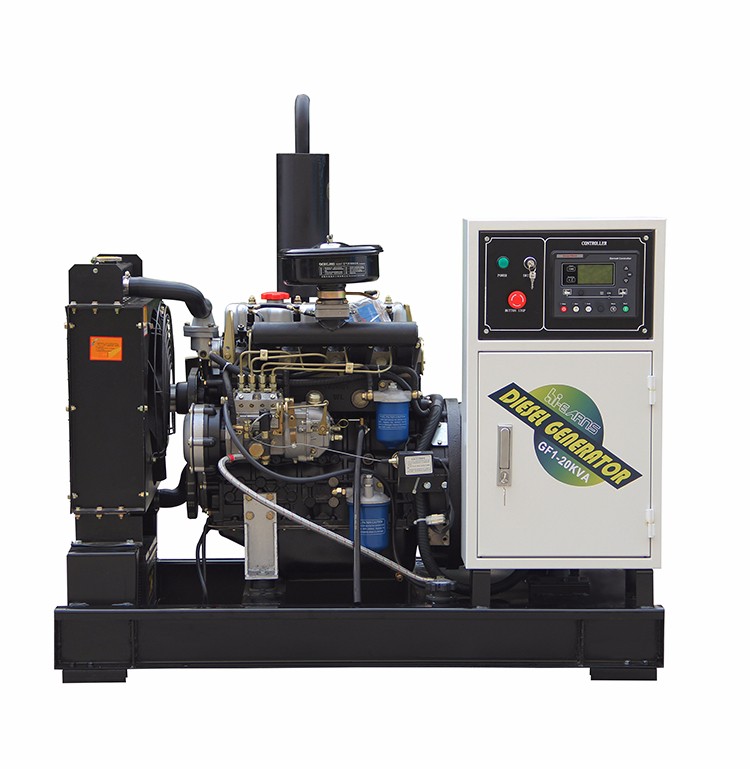

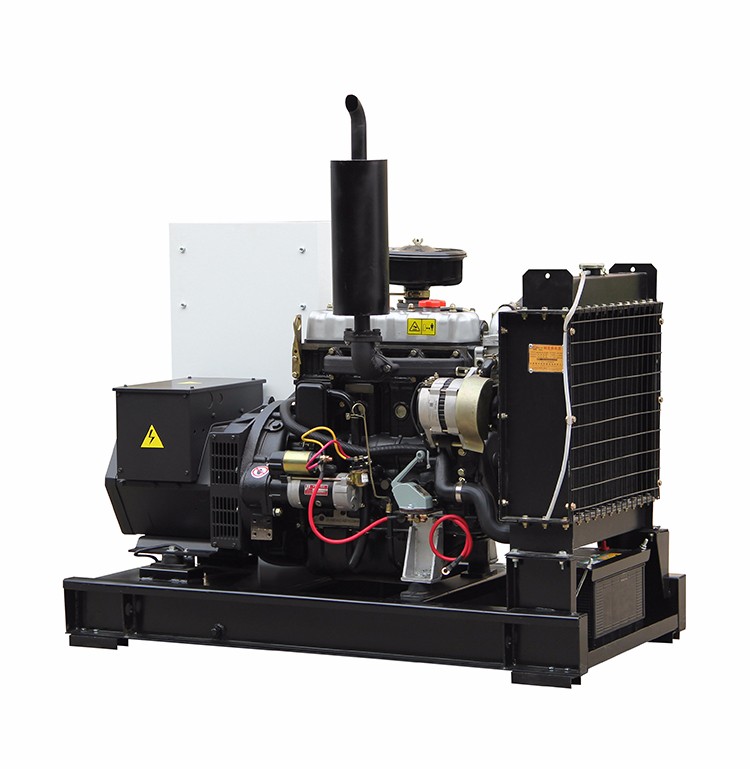

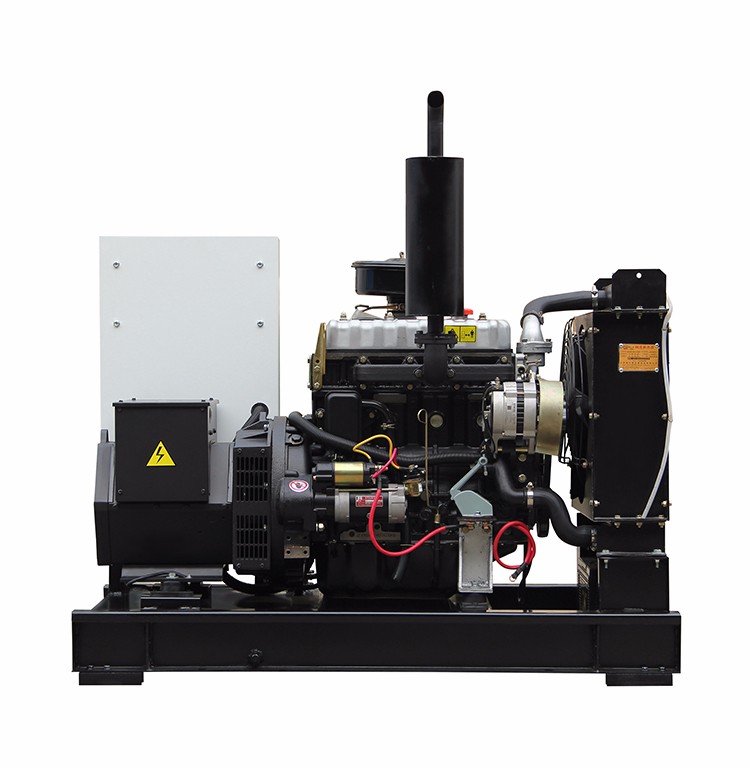

16KW 20KVA water cooled diesel generator
Brief introduction：
Prime Power Of 16kw diesel generator(PRP)：16kw diesel generator is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); A 10% o...- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
16KW diesel generator
| Voltage | Frequency (HZ) | Phase | P.F(COS) | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 28 | 17/21 | 16/20 |
| 415/240 | 50 | 3 | 0.8 | 30 | 17/21 | 16/20 |
| 400/230 | 50 | 3 | 0.8 | 31 | 17/21 | 16/20 |
| 380/220 | 50 | 3 | 0.8 | 32 | 17/21 | 16/20 |
Standby Power Rating(ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload, utility parallel or negotiated outage operation capability is available at this rating. | ||||||
Prime Power Of 16kw diesel generator(PRP)：16kw diesel generator is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA Of 16KW diesel generator | ||||||
| Engine Type : | Quanchai Engine QC490D. Four-stroke, Water-cooled, Direct line | |||||
| Rated RPM (r/min) | 1500rpm | |||||
| Cooling System | Forced Water-cooled | |||||
| Fuel Consumption (≤g/kw.h) | ≤243 | |||||
| Cylinder Number | 4 | |||||
| Bore×Stroke (mm) | 90×105 | |||||
| Displacement (L) | 2.672 | |||||
| Start Method | Electric Start | |||||
| Rated Speed Regulation （g/kW·h） | ≤5 | |||||
| Combustion Chamber Type | Direct Injection | |||||
| Add Oil Capacity | 6.5L | |||||
| ALTERNATOR DATA Of 16KW diesel generator | ||||||
| Alternator Data | ||||||
| Power Factor | 0.8 Lag | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| Protection Grade | IP23 | |||||
| Exciter Type | Brushless,self-exciting | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature (℃) | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Intake Type | Natually-Aspirated | |||||
| Rated Speed Regulation% | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension Weight Of 16KW diesel generator | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size :1.43(m)×0.75(m)×1.20(m) | Overall Size :1.70(m)×0.87(m)×1.10(m) | |||||
| Net Weight ：500kg | Net Weight ：620kg | |||||
