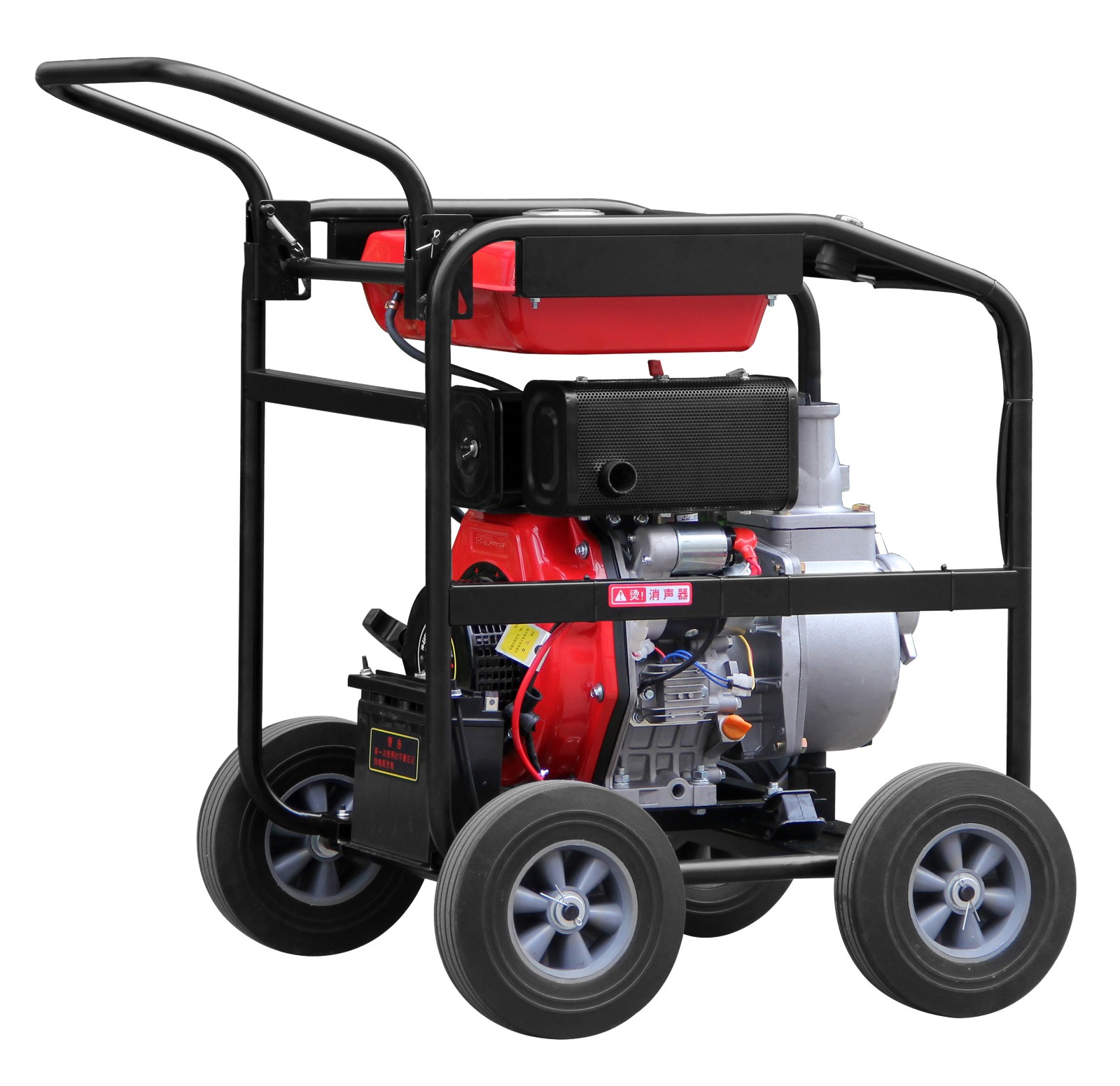

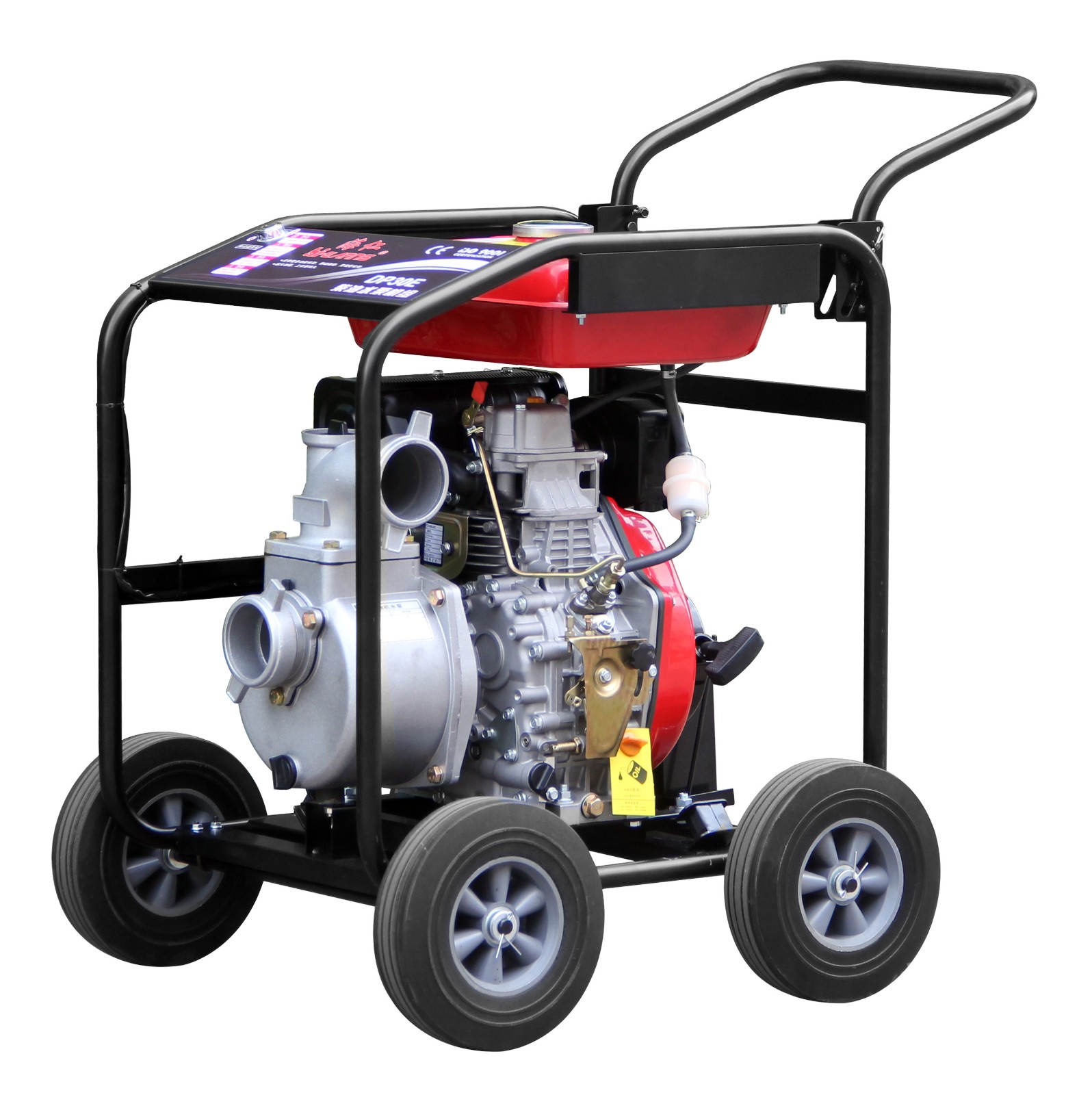

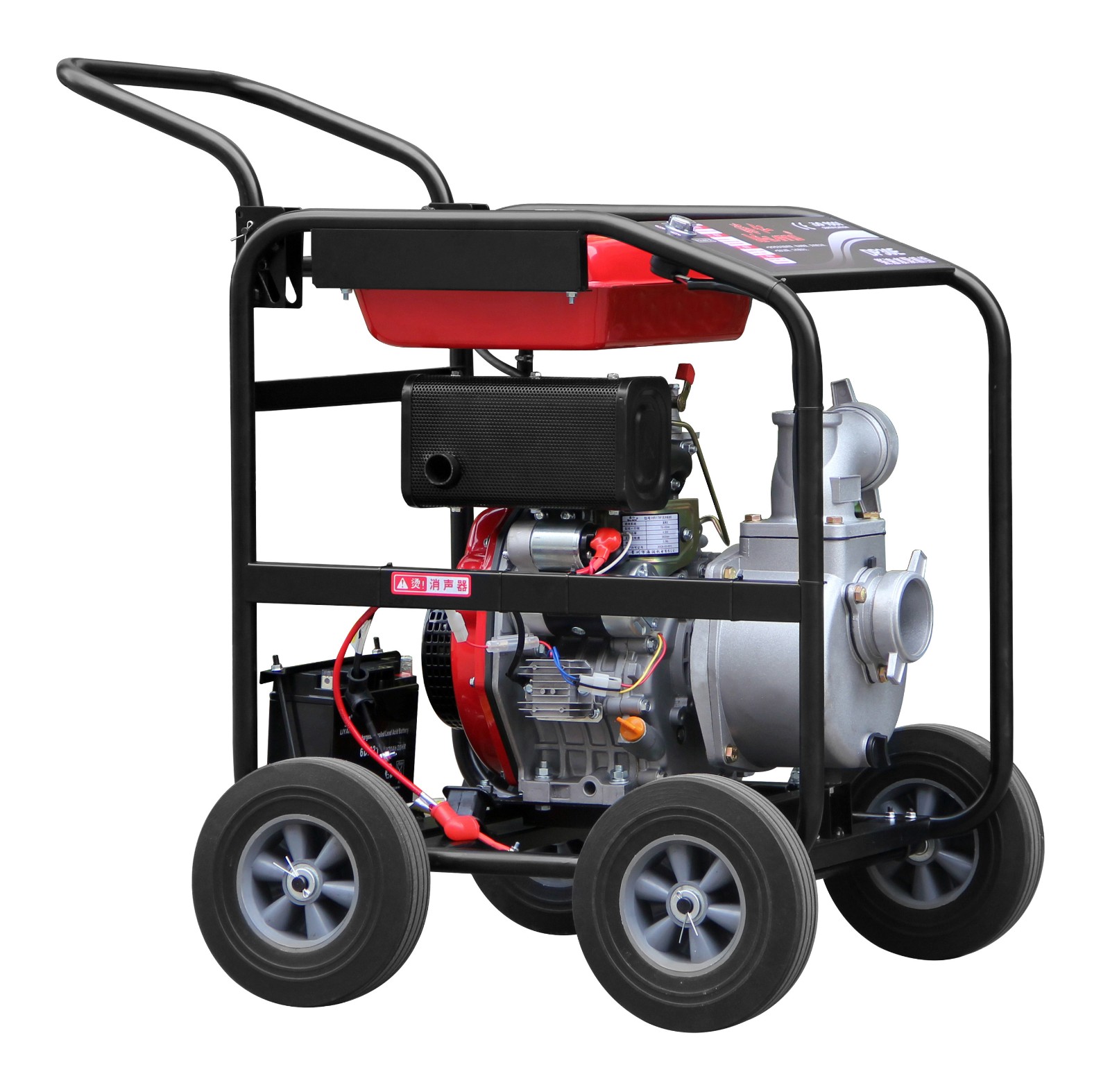

3 inch types of diesel engine high pressure water pump
♦ DP30HE model: With 10 HP HR186FA air-cooled diesel engine, Ensure a big flow and self-priming type; water pump
♦ Also have 2inch, 3 inch and 4 inch models, just according what you need!
♦ 5.5l big fuel tank snsure a long operation time;wat
♦ High pressure model, big cont. head;
| WATER PUMP | Model | DP30HE | |
| Suction,discharge port diameter[mm(in)] | 80(3#39;#39;) | ||
| Cont.head(m) | 70 | ||
| Self-priming time(s/4m) | 120 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 40 | ||
| ENGINE | Engine model | HR188FA | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 295 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 438 | ||
Bore*stroke(mm) | 88x72 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 645×475×605 | |
| Net weight(kg) | 75 | ||
| 20FT | 108 | ||
Automatic workshop
♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;
♦ Flow card ro record each details carefully;
Company Information
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
