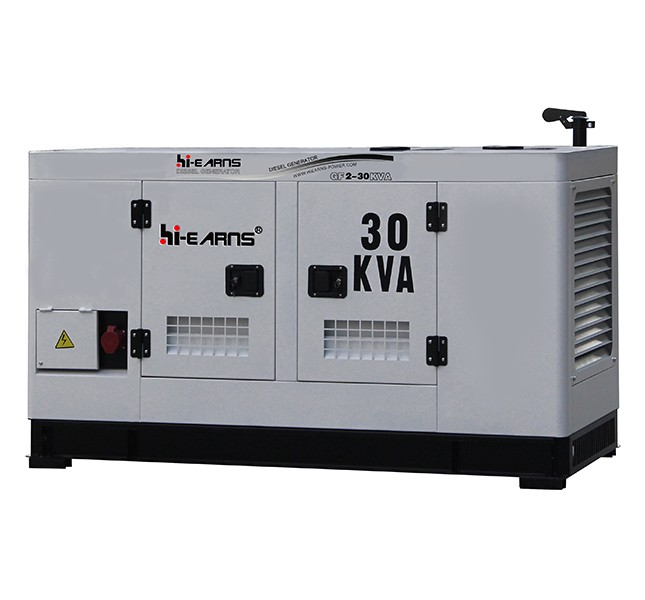

30KVA silent water cooled diesel generator
Brief introduction：
,diesel engine,electrical engine,Made in china,Water-Cooled Engine,,
E-mail: smart@kubaoya.com
Follow us:
Inquiry Now

30KVA water cooled diesel generator

Model	GF2-30KVA
Standby power (50HZ)	25KW / 31KVA
Prime power (50HZ)	24KW / 30KVA
Voltage (V)	220/380V
Phase	3
Power factor (cosphi;)	0.8
Standby amps (A)	47
Engine type	Quanchai Engine 4102D, 4-stroke, water-cooled, direct line
Rated RPM (r/min)	1500rpm
Cooling system	Forced water-cooled
Fuel consumption (g/kw.h)	≤ 238
Rated speed regulation	≤ 5
Bore x stroke (mm)	102 x 118
Displacement (L)	3.857
Start Method	Electric start
Add oil capacity (L)	8L
Alternator Data
Power factor	0.8 Lag
Insulation class	H
Lubricating system	Pressure, split, complex
Exciter type	Brushless, self-exciting
Altitude	≤ 1000m
Environment temperature (°C)	40
Connecting type	3 phase and 4 wires, "Y" type connecting
Protection grade	IP23
Intake type	Natually-Aspirated
Rated speed regulation %	≤±1%
Phase	3
Overall size (m)	2.12 x 0.97 x 1.23(m)
Weight (kg)	812kg
