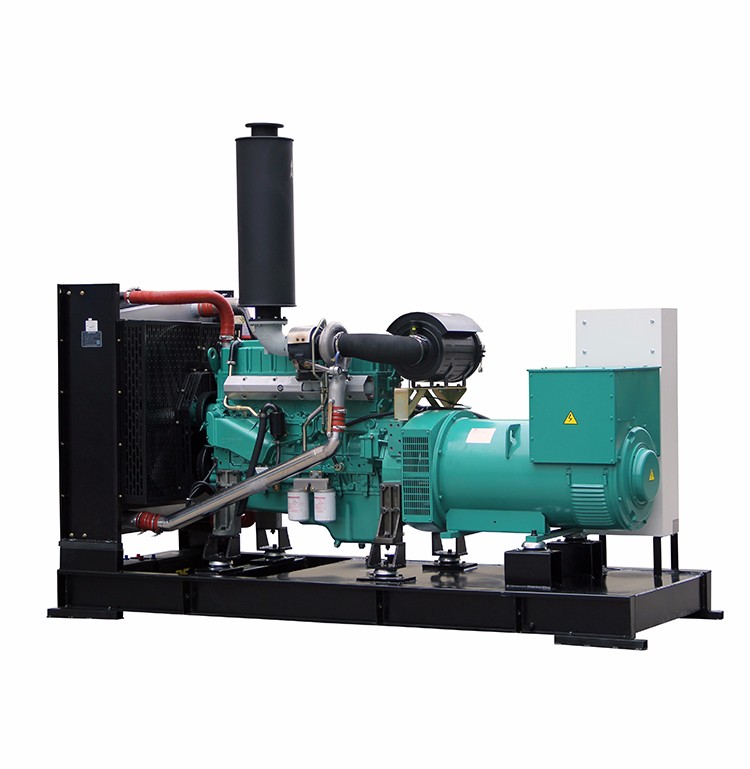

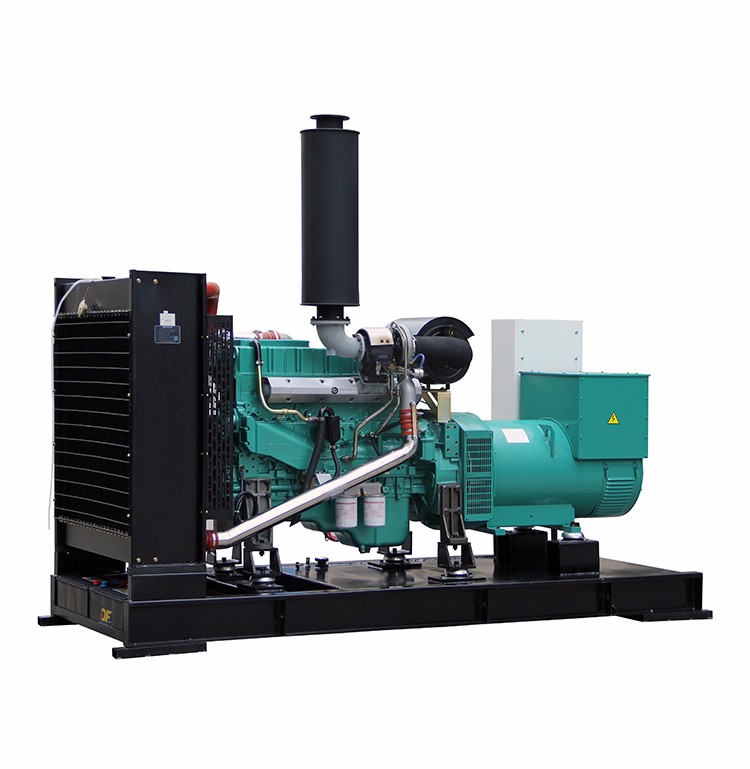

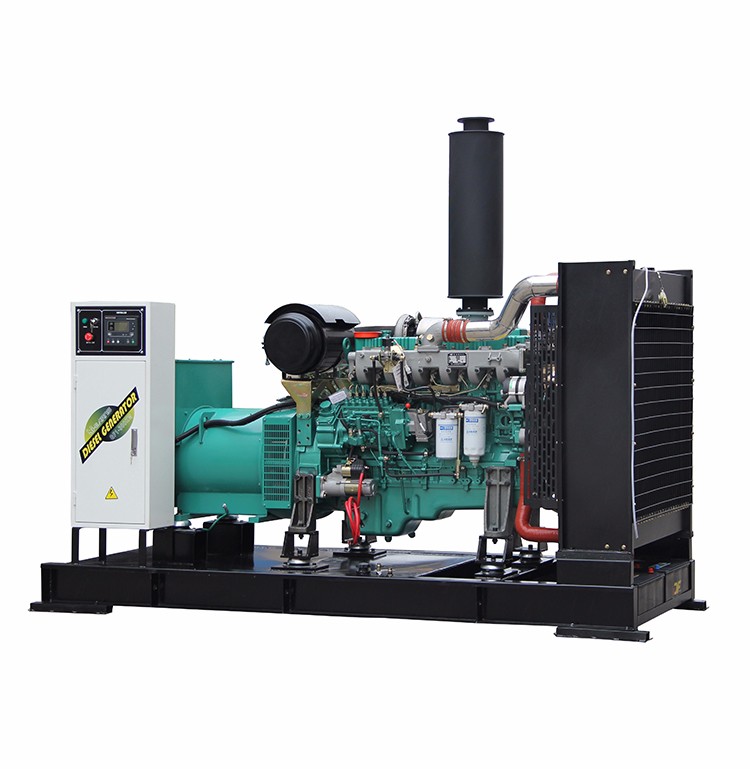

375KVA diesel generator
Brief introduction：
Low consumption, competitive price, short delivery time, strong and stable power, best after-sale service
Electric start, Smartgen digital panel- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
| Voltage | Frequency (HZ) | Phase | P.F(COS) | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 512 | 312/390 | 300/375 |
| 415/240 | 50 | 3 | 0.8 | 543 | 312/390 | 300/375 |
| 400/230 | 50 | 3 | 0.8 | 563 | 312/390 | 300/375 |
| 380/220 | 50 | 3 | 0.8 | 593 | 312/390 | 300/375 |
| ENGINE DATA | ||||||
| Model | SC15G500D2 | |||||
| Diesel Generator Type | Direct injection,Direct line, Four stroke,Water-cooled | |||||
| Cylinder Number | 12 | |||||
| Bore×Stroke（mm） | 135×150 | |||||
| Compression Rate | 16:01 | |||||
| Total Displacement （L） | 25.8 | |||||
| Rated Fuel Consumption （g/kW·h） | 220 | |||||
| Timing Method | Mechanical Governor | |||||
| Rated RPM（r/min） | 1500 | |||||
| Cooling System | Fan,Water tank enforce cooling | |||||
| Start Method | Electric Start | |||||
| ALTERNATOR DATA | ||||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| exhaust Air Temperature (℃) | ≤680 | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature (℃) | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Rated Speed Regulation% | 5% | |||||
| Dimension Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size (mm):3150×1400×1540 | Overall Size (mm):3600×1500×1640 | |||||
| Weight ：2380kg | Weight ：2460kg | |||||
