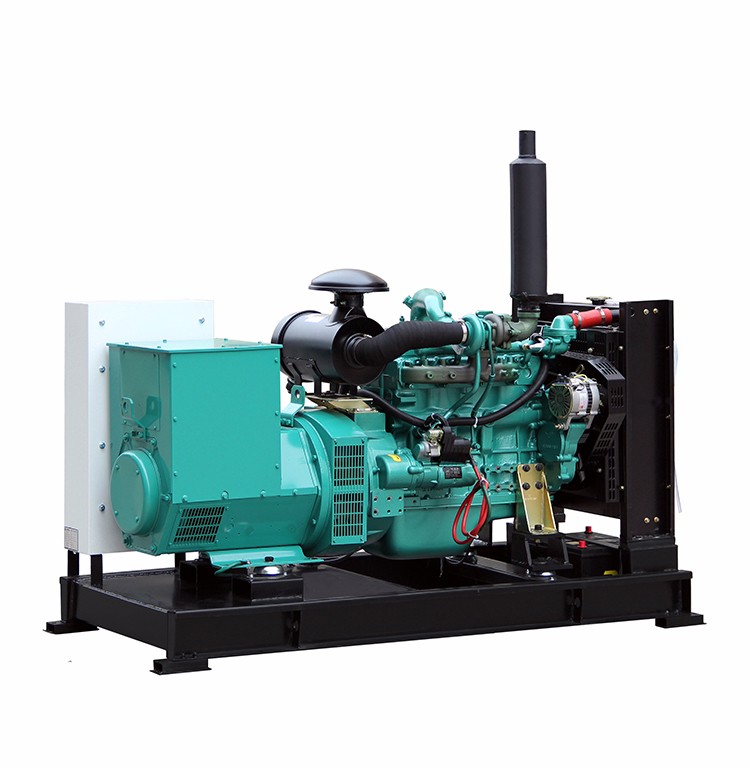

65KVA Cummins diesel generator
Brief introduction：
65KVA Cummins diesel generator price.
1. Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every asp...- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
| MODEL | GF1- 65KVA |
| Standby Power(50HZ ) | 52KW / 65KVA |
| Prime Power(50HZ ) | 48KW / 60KVA |
| ENGINE DATA | |
| Manufacturer/Model: | DCEC Cummins 4BTA3.9-G2,4-cycle |
| Air Intake System: | Turbo,Water/Air DC |
| Fuel System: | AD type fuel pump |
| Cylinder Arrangement: | 4 in line |
| Displacement: | 3.9L |
| Bore and Stroke: | 102×120(mm) |
| Compression Ratio: | 16.5:1 |
| Rated RPM: | 1500rpm |
| Max.Standby Power at Rated RPM: | 65KW / 88.4HP |
| Governor Type: | Electronic Speed Control System |
| Exhaust System | |
| Exhaust Gas Flow: | 14.8m3/min |
| Exhaust Temperature: | 497°C |
| Max Back Pressure: | 10kPa |
| Air Intake System | |
| Max Intake Restriction: | 6.2kPa |
| Buring Capacity: | 5.9m3/min |
| Intake Flow: | 158m3/min |
| Fuel System | |
| 100%(Prime Power) Load: | 216g/Kw.h |
| 75%(Prime Power) Load: | 214g/Kw.h |
| 75%(Prime Power) Load: | 221g/Kw.h |
| Oil System | |
| Total Oil Capacity: | 16.4L |
| Oil Consumption: | ≤4g/kwh |
| Engine Oil Tank Capacity: | 14.3L |
| Oil Pressure at Rated RPM: | 350kPa |
| Cooling System | |
| Total Coolant Capacity: | 24L |
| Thermostat: | 83-95°C |
| Max Water Temperature: | 100°C |
| Open Type | Soundproof Type |
| Overall Size:1800(mm)×750(mm)×1450(mm) | Overall Size:2400(mm)×1000(mm)×1450(mm) |
| Weight:930kg | Weight:1450kg |
