9kw air cooled silent diesel generator DG14000SE with 1102F patent engine home use
Brief introduction：
9KW diesel generator with 1102F patent engine
unique in China, only we can produce in China.
The biggest power of the single-cylinder engine.- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now

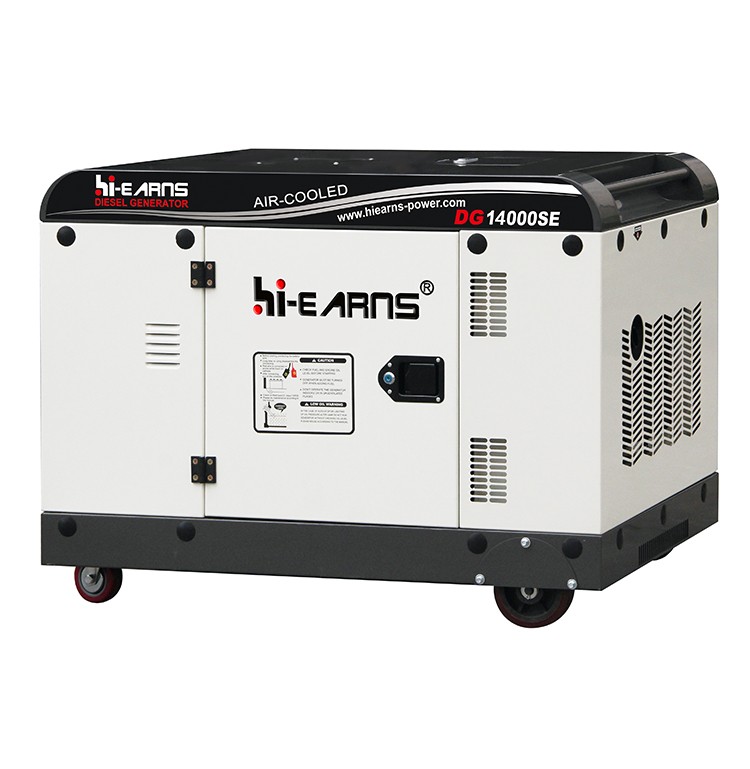

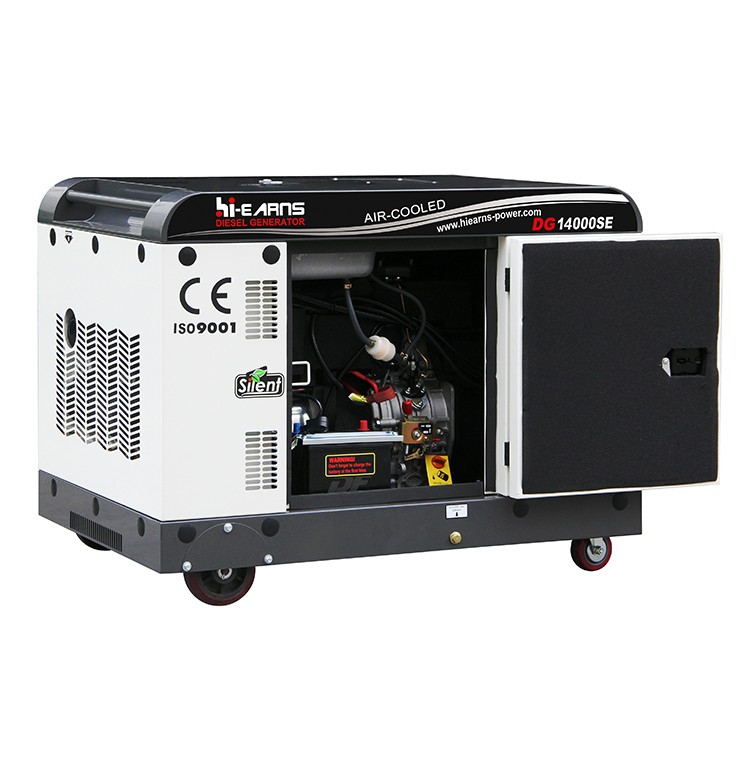

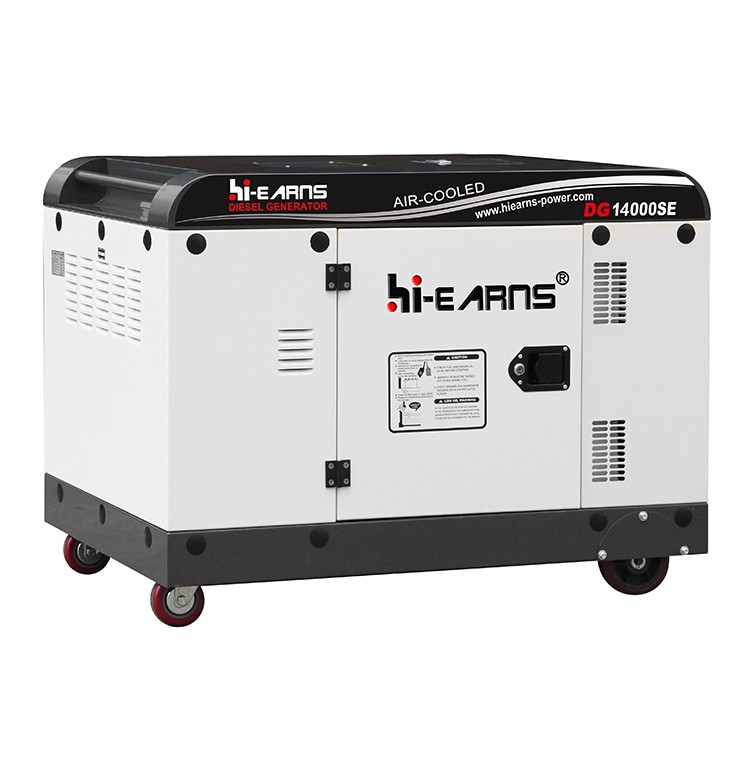

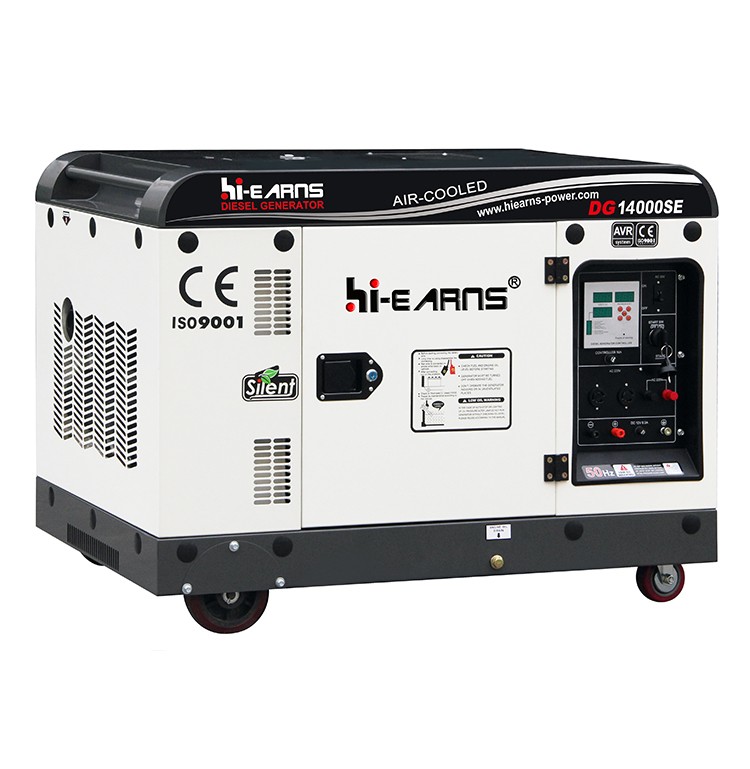

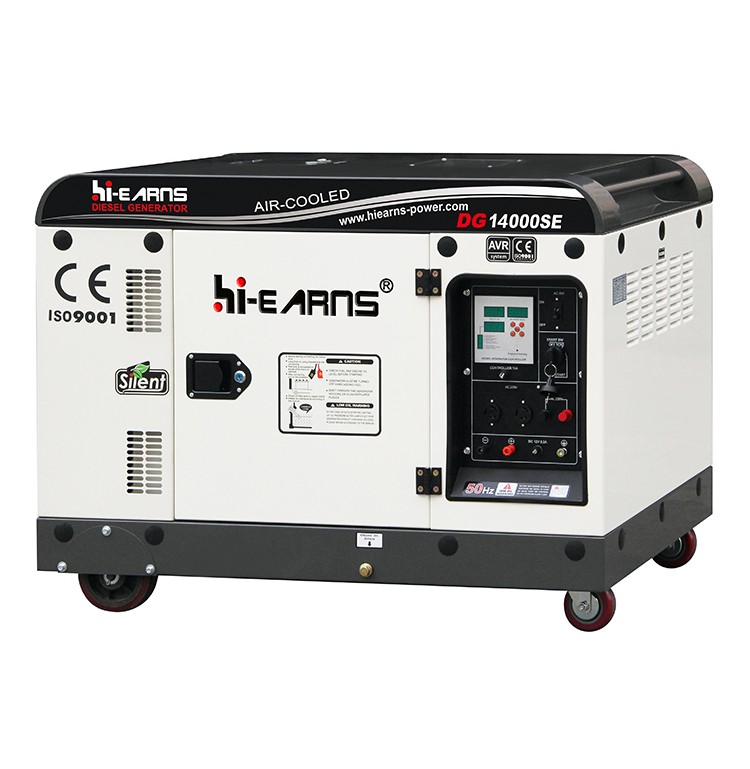

9KW Silent diesel generator DG14000SE with 1102F patent engine
| Model | DG14000E 9kw diesel generator | ||
| GENERATOR | Frequency (HZ) | 50 | 60 |
| Max.output (KW) | 9.5 | 9.8 | |
| Rated output (KW) | 9.0 | 9.3 | |
| Rated AC voltage (V) | 120, 220, 230, 240, 220/380, 230/400, 240/415 | ||
| Power factor | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase or Three phase | ||
| Alternator type | Self-excited, 2-pole alternator | ||
| Starting system | Electric | ||
| Noise level (Dba/7m) | 72-75 | ||
| Fuel tank capacity (L) | 30 | ||
| Continuous running time (hr) | 12 | 12 | |
| ENGINE | Engine model | HR1102F | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore×Stroke (mm) | 102×88 | ||
| Fuel consumption rate (g/kw.h) | 240 | ||
| Fuel | 0# or -10# light diesel oil | ||
| Lubrication oil volume (L) | 1.65 | ||
| Combustion system | Direct Injection | ||
| STANDARD FEATURES | Voltmeter | YES | |
| AC output socket | 2 | ||
| AC circuit breaker | YES | ||
| Oil warning light | YES | ||
| Oil alert | YES | ||
| OPTIONAL FEATURES | DC circuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | ||
| Big wheel | OPTIONAL | ||
| Three phase voltage | OPTIONAL | ||
| Current meter | OPTIONAL | ||
| ATS | OPTIONAL | ||
| Remote control | OPTIONAL | ||
| DIMENSIONS | Packing dimention (LxWxH) (cm) | 77×54×70 | |
| Gross weight (kgs) | 155 | ||
| 20FT loading pcs | 80 | ||
| 40HQ loading pcs | 180 | ||
9KW Silent diesel generator DG14000SE
