Air cooled diesel water pump set prices
DP60E model: With 14 HP HR192FB air-cooled diesel engine, Ensure a big flow and self-priming type;

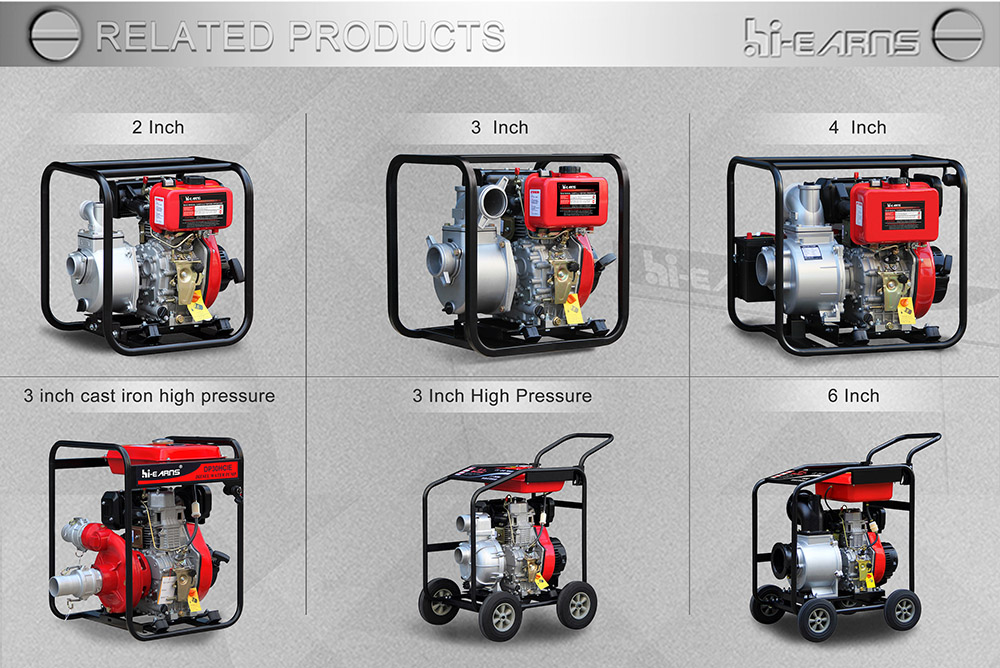

Also have 2inch, 3 inch and 4 inch models, just according what you need!
12.5l big fuel tank snsure a long operation time;
Portable model with wheels and handle ensure easily moving;
| WATER PUMP | Model | DP60E | |
| Suction,discharge port diameter[mm(in)] | 150(6#39;#39;) | ||
| Cont.head(m) | 15 | ||
| Self-priming time(s/4m) | 200 | ||
| Max suction head(m) | 6 | ||
| Cont.capacity(m³/hr) | 180 | ||
| ENGINE | Engine model | HR192FB | |
| Speed(rpm) | 3200 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
| Displacement(cc) | 498 | ||
| Bore*stroke(mm) | 92*75 | ||
| Starting system | Electric | ||
| Fuel tank capacity(L) | 12.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 790X560X870 | |
| Net weight(kg) | 120 | ||
