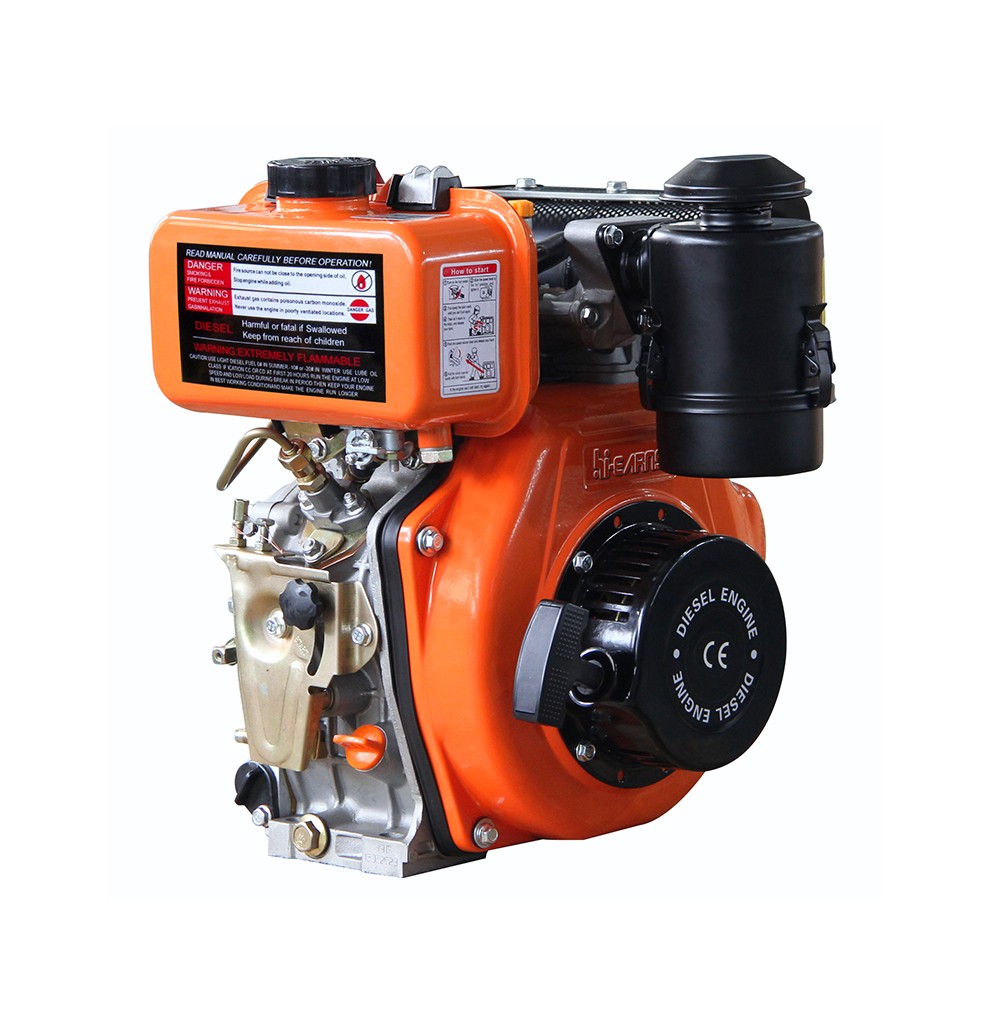

Hi-earns HR170F 4hp single cylinder diesel engine

Product Categroies

Home > Products > Single cylinder engine > Diesel engine

Model	HR170F(E)
Type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
Combustion System	Direct Injection
Bore×Stroke (mm)	70×55
Displacement capacity (cc)	211
Speed (rpm)	1500	1800
Max.output (kw)	2.8	3
Rated output (kw)	2.5	2.8
Fuel	o# or-10# light diesel oil
Fuel oil tank volume (l)	2.5
Lubricatiom oil volume (l)	0.75
Fuel oil consumption rate (g/kw.h)	280
Starting system	Recoil or Electric 手启动或电启动
PTO rotation direction	It is clockwise as viewing from the flywheel end
Dimension (mm)	420×390×470
Gross weight (kg)	29
20FT QTY	300
