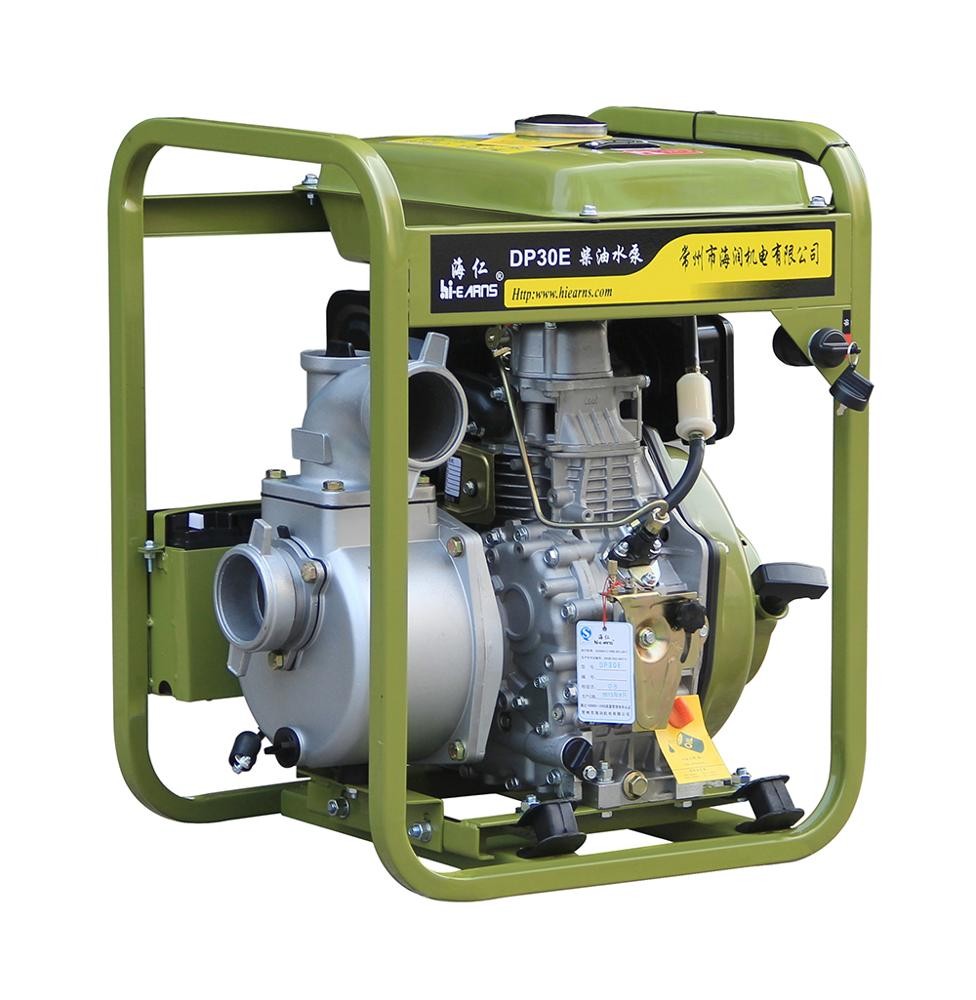

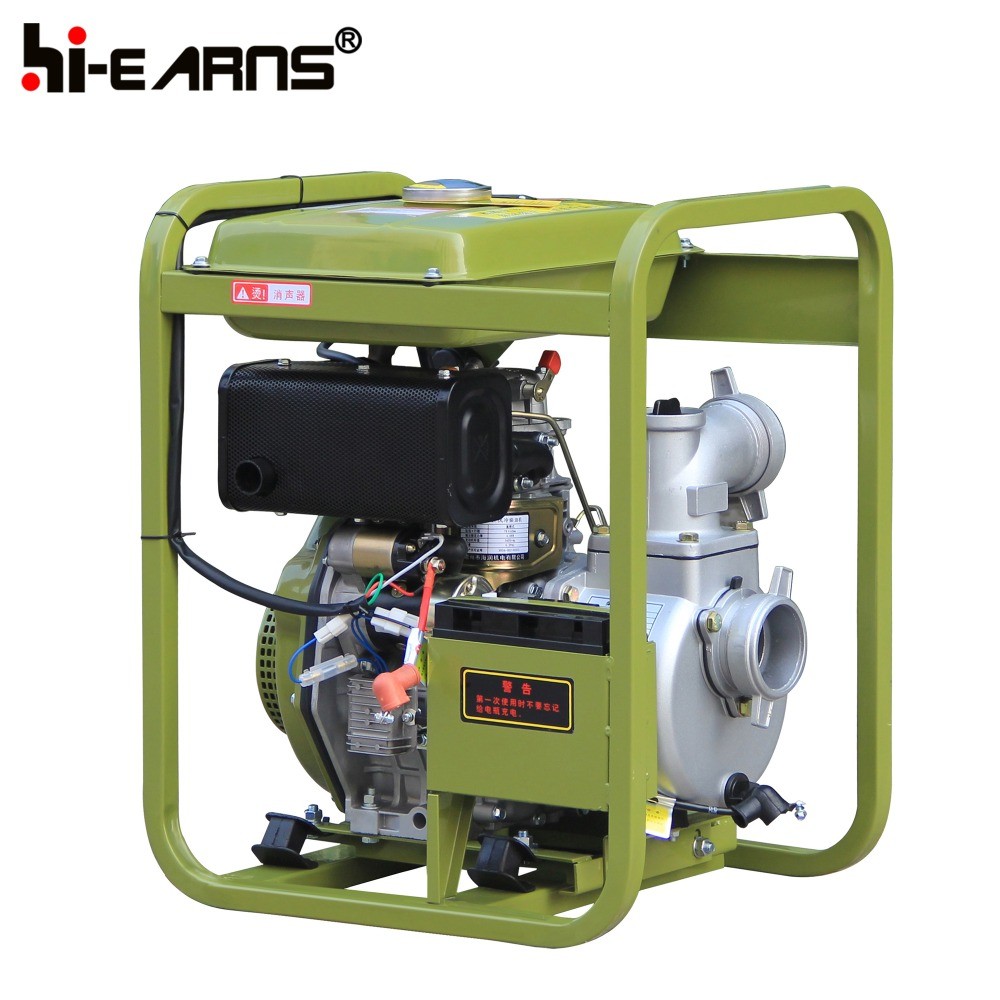

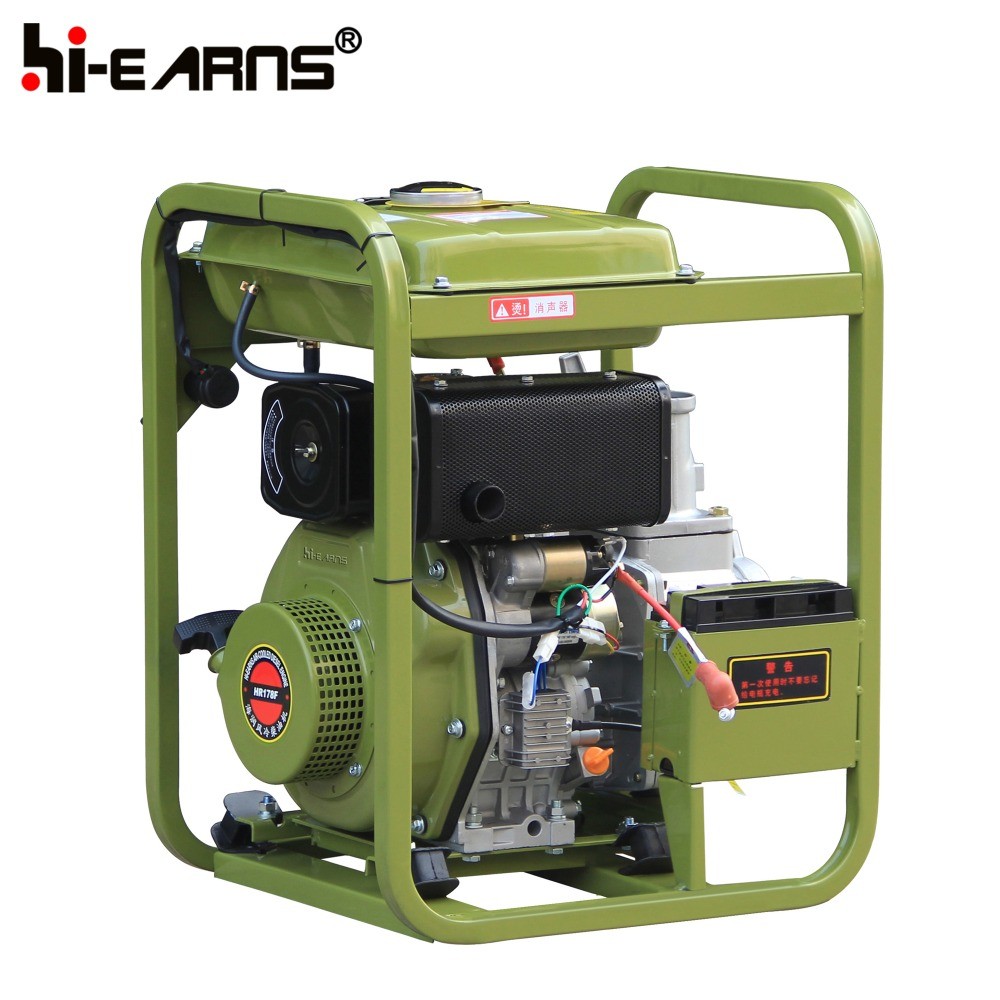

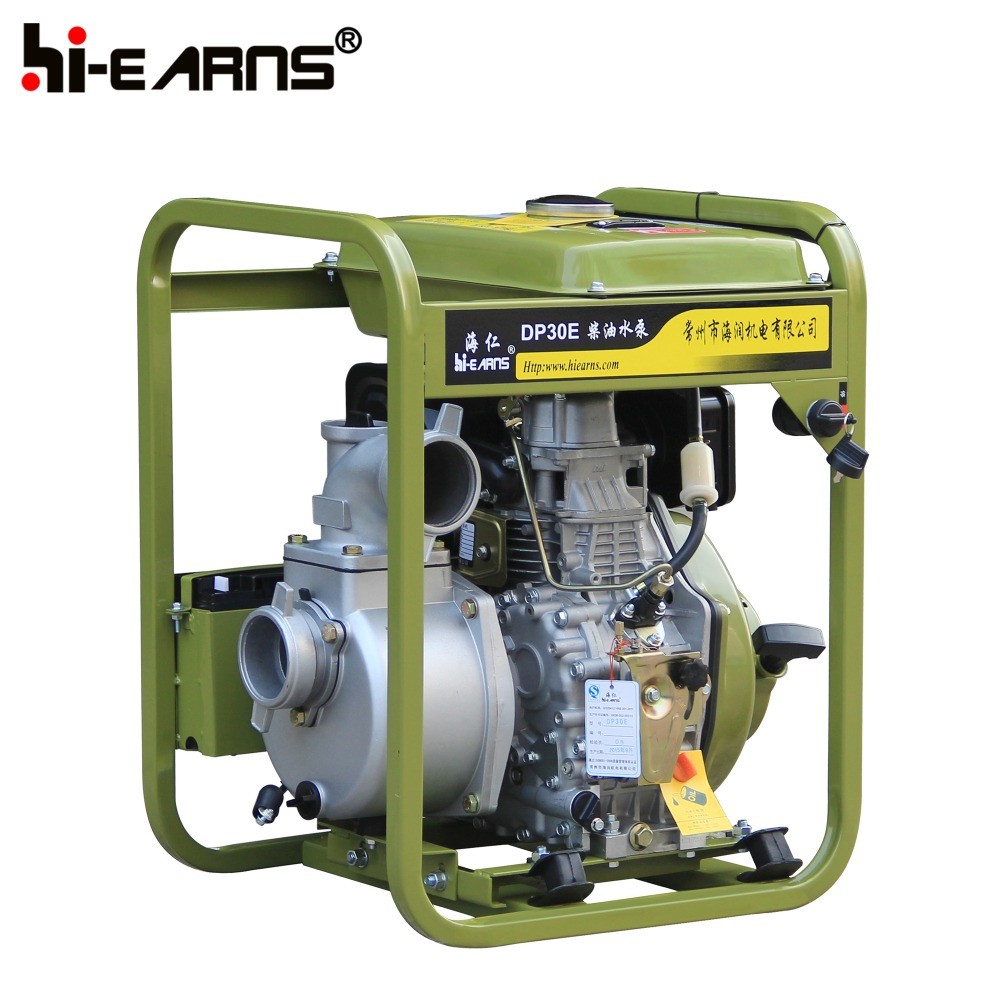

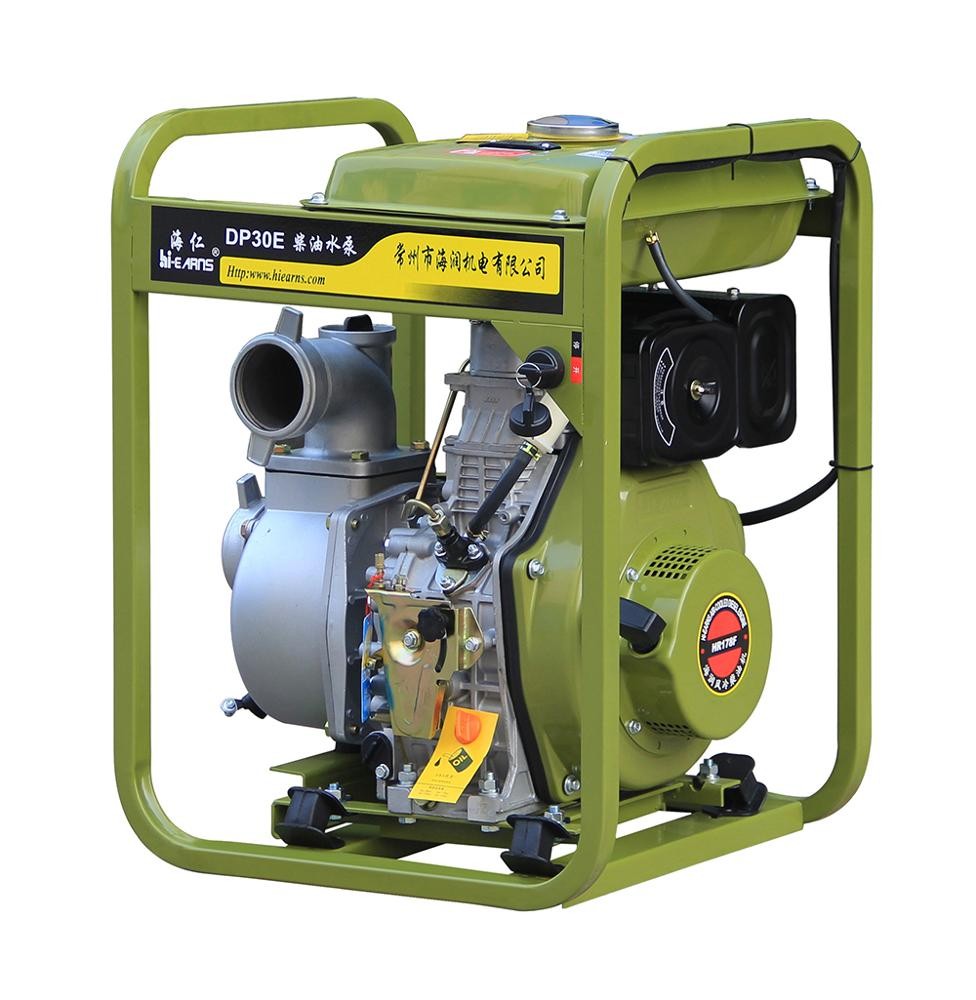

3 inch agricultural water pump motor price

♦ Use good brand spare parts, big cont. head

♦ Portable type, easy to move and lifting

♦ We are factory, have low price spare parts and timely technical support

WATER PUMPModelDP30
Suction,discharge port diameter[mm(in)]80(3#39;#39;)
Cont.head(m)28
Self-priming time(s/4m) 120
Max suction head(m)8
Cont.capacity(m³/hr)50
ENGINEEngine modelHR178F
Speed(rpm)3600
Fuel consumption(g/kw.h)295
TypeSingle-cylinder,vertical,4-stroke air-cooled diesel engine

Displacement(cc)

296

Bore*stroke(mm)

78*62

Starting system

Recoil or Electric
Fuel tank capacity(L)3.5
STANDARD FEATURESOil alertyes
Connector of infall,Connecto of outfallyes
Filteryes
Seal ringyes
Hoopyes
DIMENSIONSDimension(L× W× H)(mm)540×440×540
Net weight(kg)52
20FT140
