• 3inch cast iron diesel water irrigation pump with 3600rpm 192 diesel engine
    • 3 inch
    • 3 inch
    • 3 inch
    • 3 inch
    • 3 inch
  • 3inch cast iron diesel water irrigation pump with 3600rpm 192 diesel engine

  • Brief introduction:
    ,diesel engine,electrical engine,water pump,Made in china,
  • E-mail: smart@kubaoya.com
  • Follow us:
  • Inquiry Now

3 inch cast iron pump-a.jpg3 inch cast iron pump-b.jpg

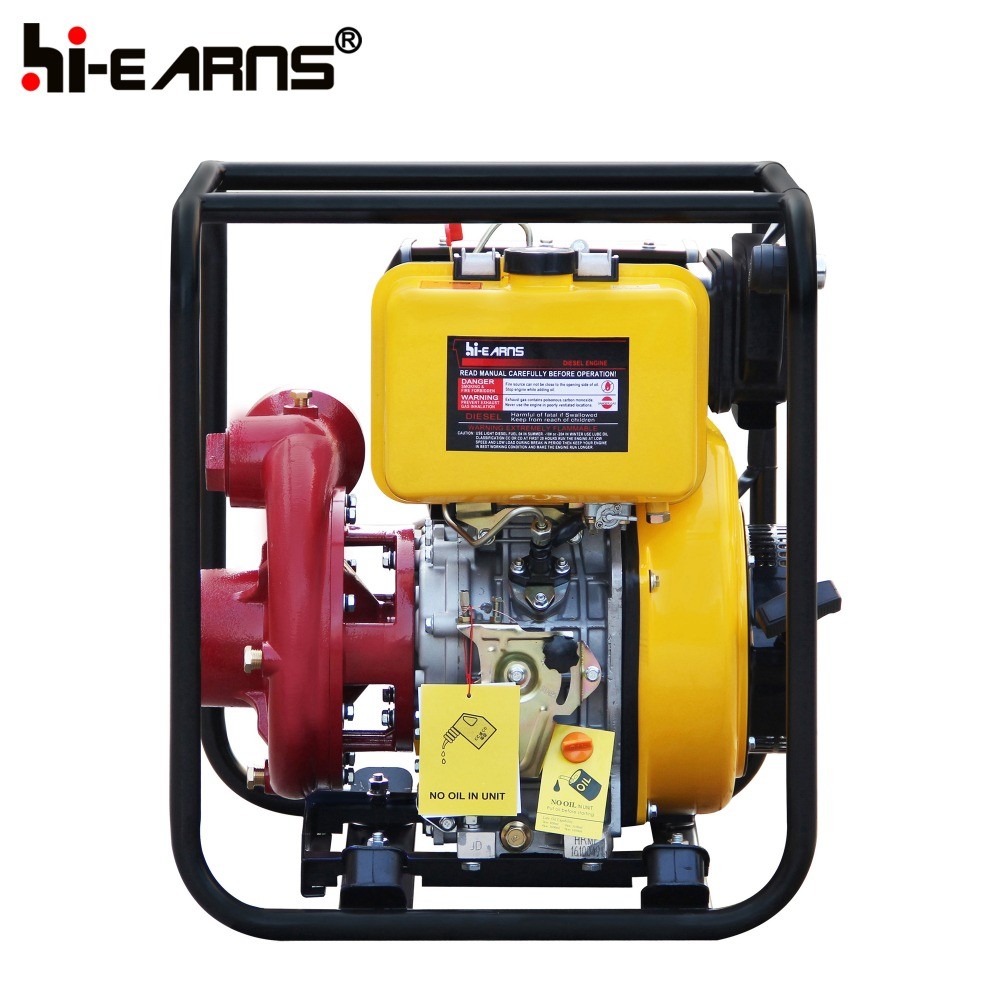

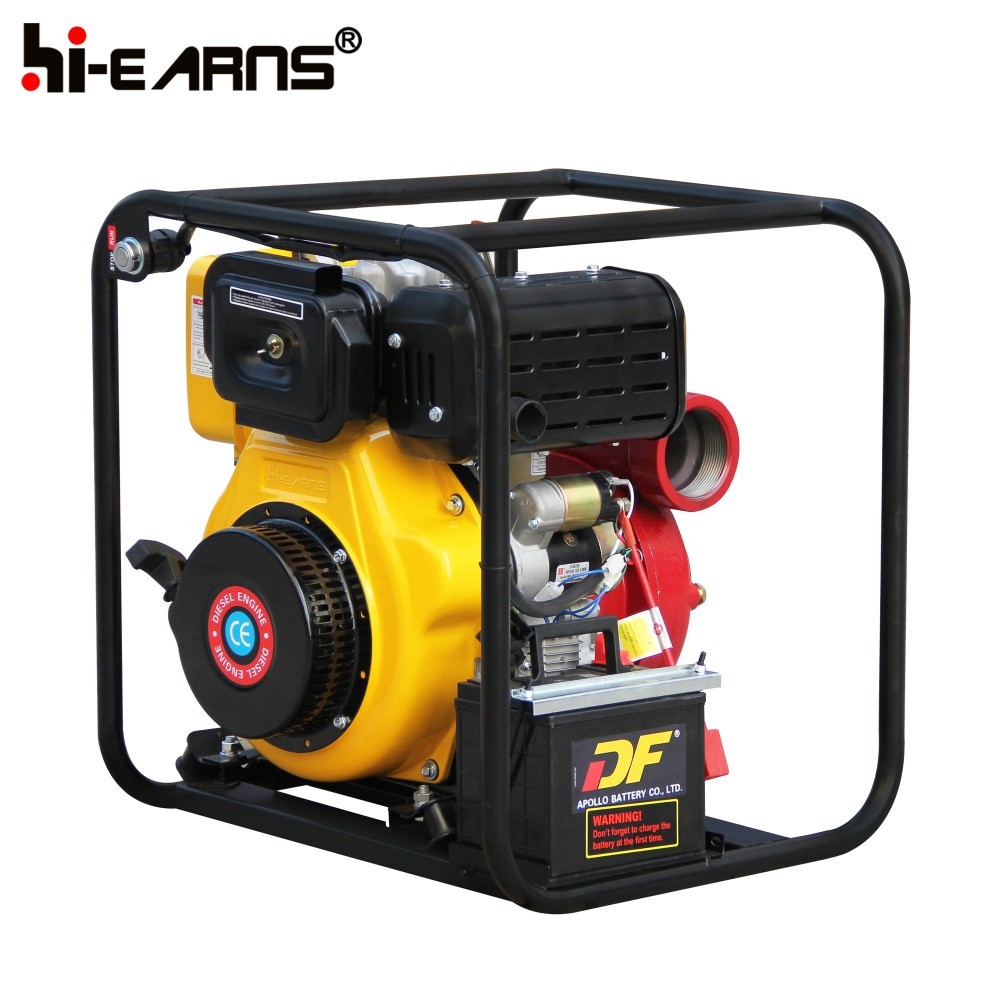

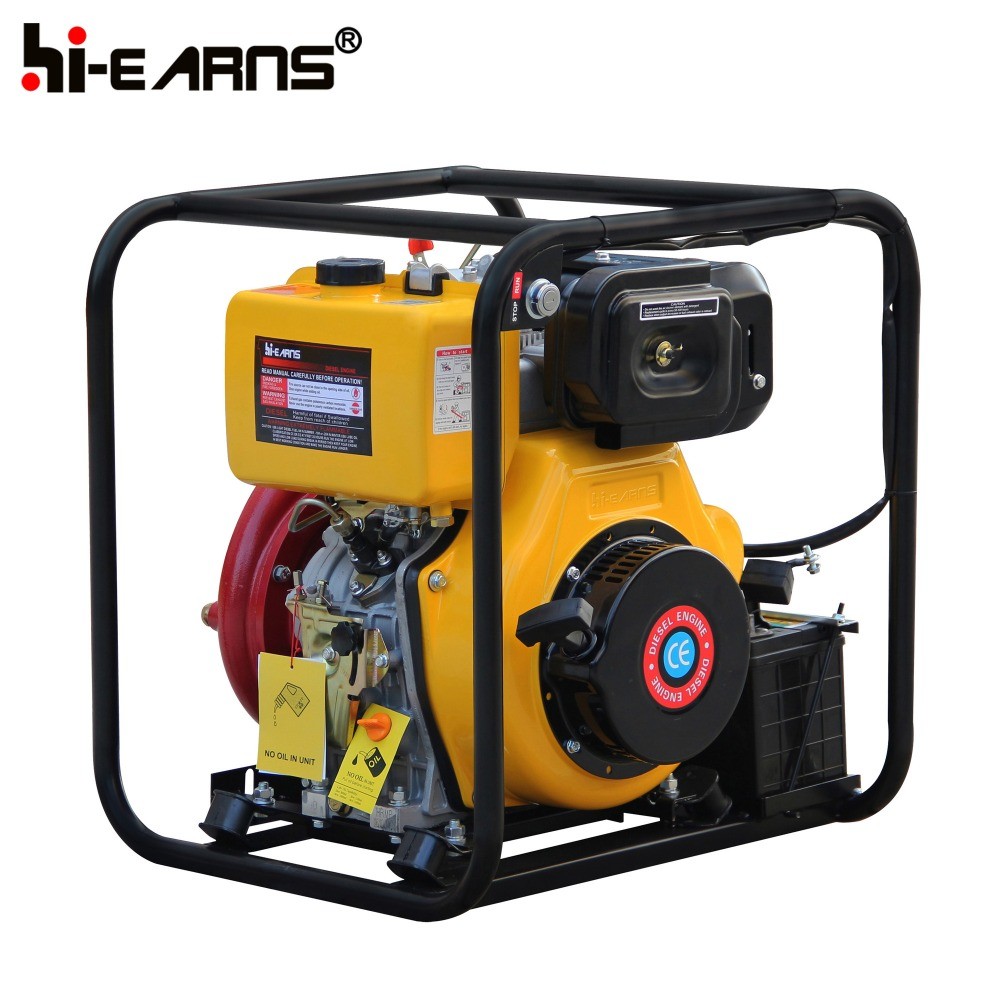

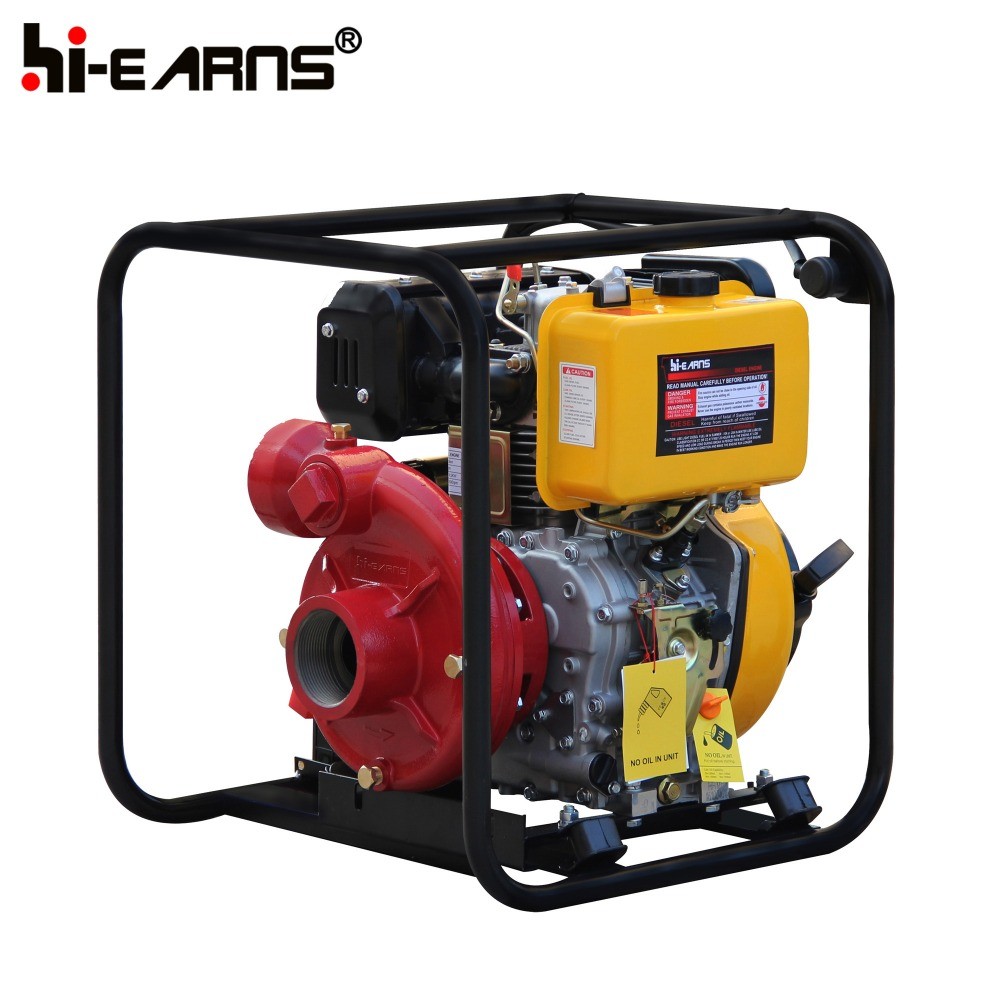

Diesel water pump(DP30HCIE)

WATER PUMPModelDP30HCIE
Suction,discharge port diameter[mm(in)]80(3#39;#39;)
Cont.head(m)75
Self-priming time(s/4m) 30
Max suction head(m)8
Cont.capacity(m³/hr)47

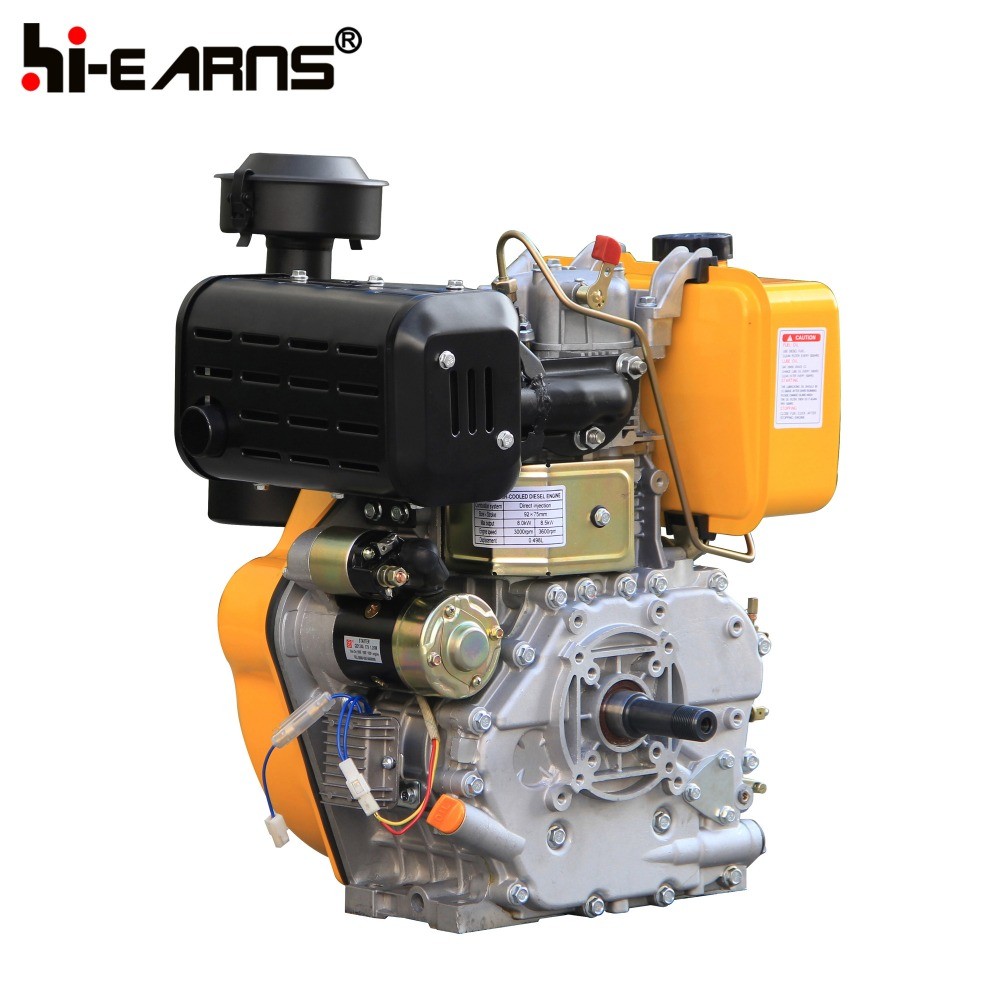

ENGINEEngine modelHR192FD
Speed(rpm)3600
Fuel consumption(g/kw.h)280
TypeSingle-cylinder,vertical,4-stroke air-cooled diesel engine

Displacement(cc)

498

Bore*stroke(mm)

92x75

Starting system

Recoil and Electric
Fuel tank capacity(L)5.5
STANDARD FEATURESOil alertyes
Connector of infall,Connecto of outfallyes
Filteryes
Seal ringyes
Hoopyes
DIMENSIONSDimension(L× W× H)(mm)580×550×630
Net weight(kg)92
20FT120

Advantages

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this reliability

is based on the outstanding design in every aspect and strict Q.C. System.

2. Customer First:

We devote ourselves to develop products to meet customers#39; requirements .Our engineer

develop and design new products for customers.

3. Strict test process before ex-factory:

Every product will be tested twice before ex-factory and our products are 100% ex- factory

pass rate.

4. Low fuel consumption, easy maintenance

5. Certification: CE and ISO

6.Our logo or OEM


IQC

Strict spare parts IQC system, to ensure every spare parts are qualified.

Technical support in every step to eliminate all detailed questions.



Automatic Workshop

Modern workshops have advanced production lines and professional knowledge of assembly.

Flow card to record each details carefully.

Automatic Workshop-1.jpgAutomatic Workshop-2.jpgAutomatic Workshop-3.jpgAutomatic Workshop-4.jpg

Packaging Shipping

Strong packaging to ensure safty during transportation.

7 layer corrugated carton or wooden box packaging for products.


Company Information

Our company is located at Changzhou of Jiangsu Province and established in 2005 with 25 million RMB registered capital and covers an area of seven acres. Our monthly capacity is more than 6000 sets, and our products are best-selling at home and abroad for many years. With no doubt, Hi-earns Company is one of the most influential manufactures in the field of electrical generators in China.

Our business specializes in water-cooled diesel-powered generator sets, air-cooled diesel-powered generator sets, gasoline-powered generator sets, water pumps, minor agriculture machinery and road machinery equipment. Our company has independently developed 198FA, which belongs to Air-cooled Diesel Engine with its proprietary intellectual property and manufacturing technology.

Certificate.jpgOur Team.jpgOur Fair.jpg

Warranty and Service

Warranty

Guarantee for one year or 500 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons (refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts

for free under the condition of this spare parts are not intentionally damaged.
