4 inch electric start 186FA diesel engine water pump farm
Brief introduction：
1.Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products,and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2.Customer F...- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now

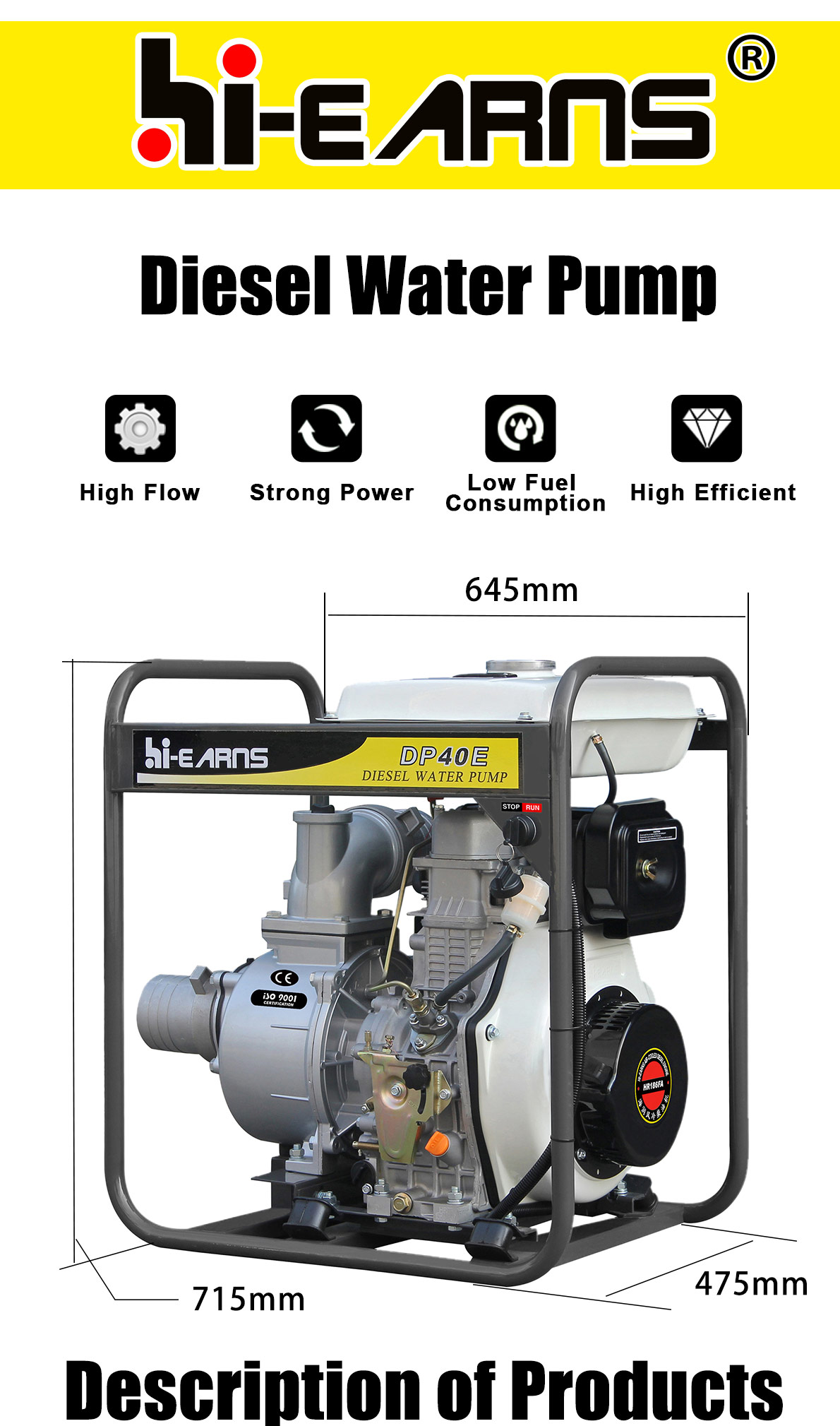

Diesel water pump(DP40E)
| WATER PUMP | Model | DP40E | |
| Suction,discharge port diameter[mm(in)] | 100(4#39;) | ||
| Cont.head(m) | 31 | ||
| Self-priming time(s/4m) | 180 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 96 | ||
| ENGINE | Engine model | HR186FA | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 280 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 418 | ||
Bore*stroke(mm) | 86*72 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |

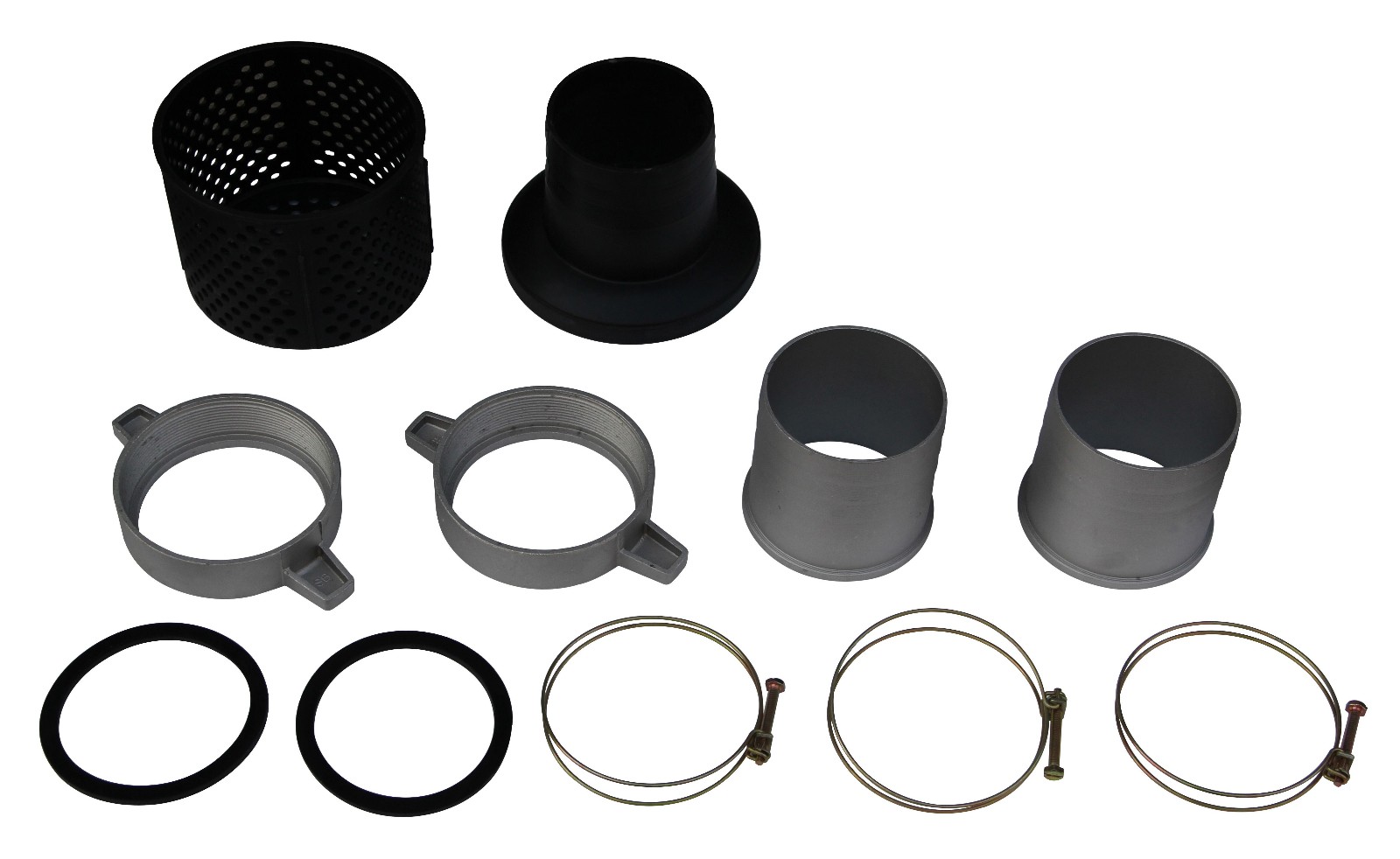

| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||

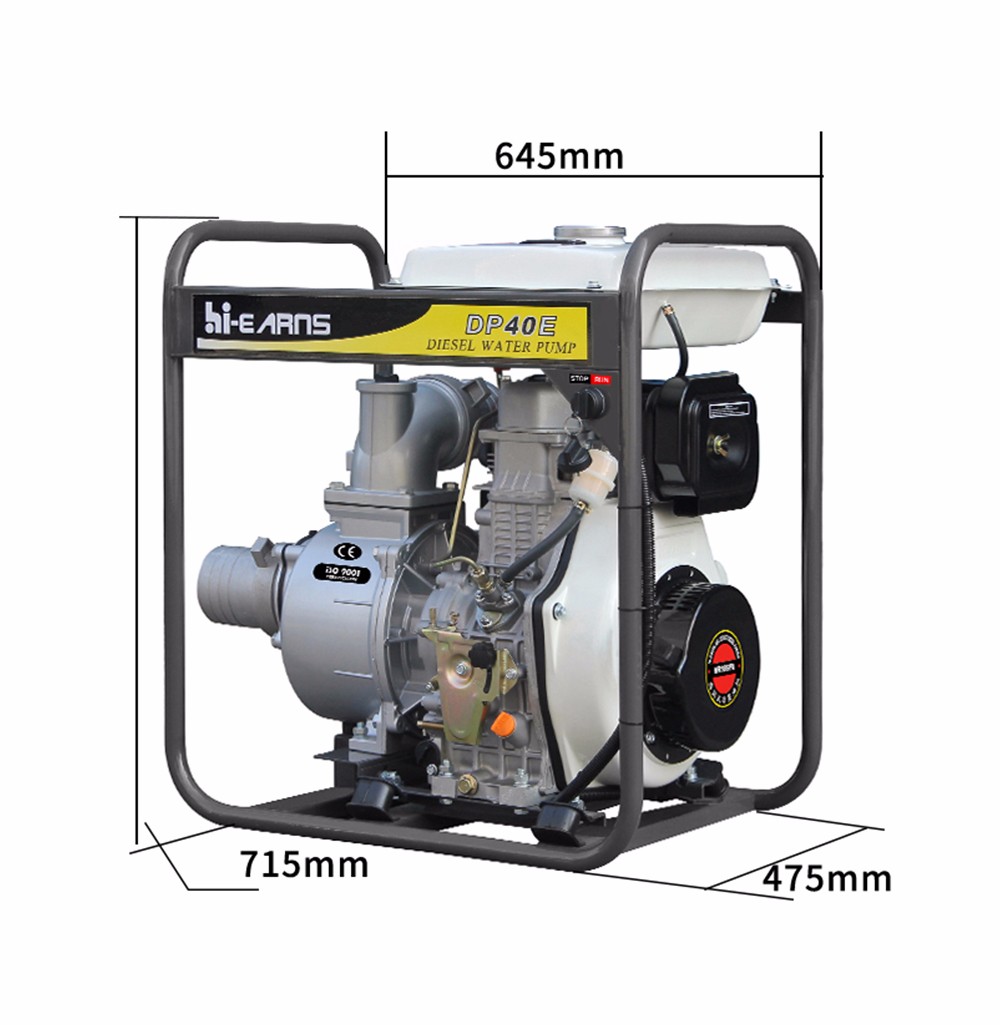

| DIMENSIONS | Dimension(L× W× H)(mm) | 645×475×605 | |
| Net weight(kg) | 69 | ||
| 20FT | 99 | ||
