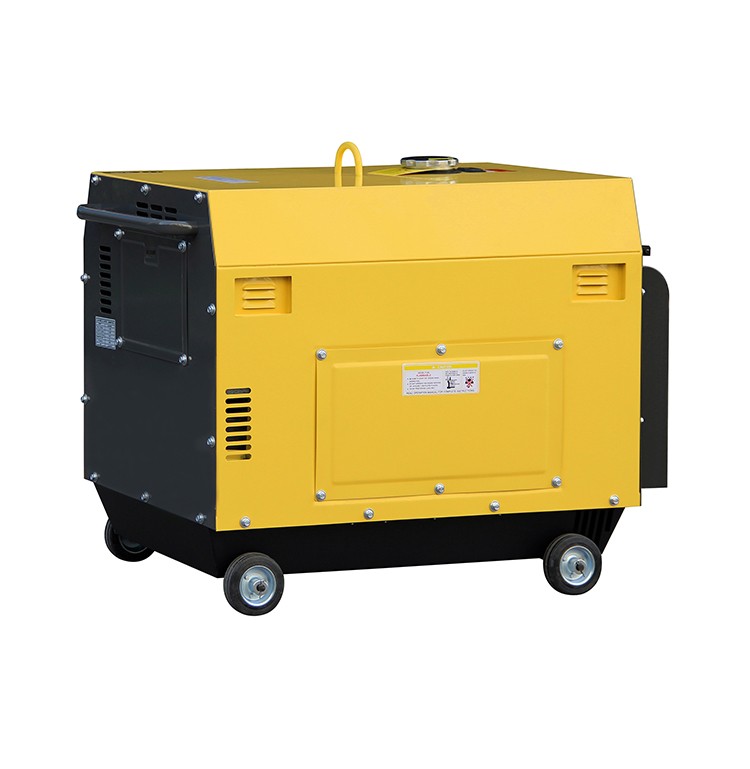

5KW generator single phase 60HZ
Brief introduction：
5KW generatorr single phase 60HZ.
Strict spare parts IQC system, to ensure every spare parts are qualified.
Technical support in every step to eliminate all detailed questions.- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
5KW generatorr single phase 60HZ
| Model | DG6500SE | ||
| GENERATOR | Frequency (HZ) | 50 | 60 |
| Max.output (KW) | 5 | 5.5 | |
| Rated output (KW) | 4.6 | 5 | |
| Rated AC voltage (V) | 120, 220, 230, 240, 220/380, 230/400, 240/415 | ||
| Power factor | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase or Three phase | ||
| Alternator type | Self-excited, 2-pole alternator | ||
| Starting system | Electric | ||
| Noise level (Dba/7m) | 68-72 | ||
| Fuel tank capacity (L) | 16 | ||
| Continuous running time (hr) | 8.5 | 7.8 | |
| ENGINE | Engine model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air cooled diesel engine | ||
| Bore×Stroke (mm) | 86×72 | ||
| Fuel consumption rate (g/kw.h) | ≤280 | ||
| Fuel | 0# or -10# light diesel oil | ||
| Lubrication oil volume (L) | 1.65 | ||
| Combustion system | Direct Injection | ||
| STANDARD FEATURES | Voltmeter | YES | |
| AC output socket | 2 | ||
| AC circuit breaker | YES | ||
| Oil warning light | YES | ||
| Oil alert | YES | ||
| OPTIONAL FEATURES | DC circuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | ||
| Big wheel | OPTIONAL | ||
| Three phase voltage | OPTIONAL | ||
| Current meter | OPTIONAL | ||
| ATS | OPTIONAL | ||
| Remote control | OPTIONAL | ||
| DIMENSIONS | Packing dimention (LxWxH) (cm) | 94×56×74 | |
| Gross weight (kgs) | 158 | ||
| 20FT loading pcs | 72 | ||
| 40HQ loading pcs | 144 | ||
