  • Brief introduction:
    8KW diesel generator with 198FA patent engine

    unique in China, only we can produce in China.

    The biggest power of the single-cylinder engine.
  • E-mail: smart@kubaoya.com
  • Follow us:
  • Inquiry Now

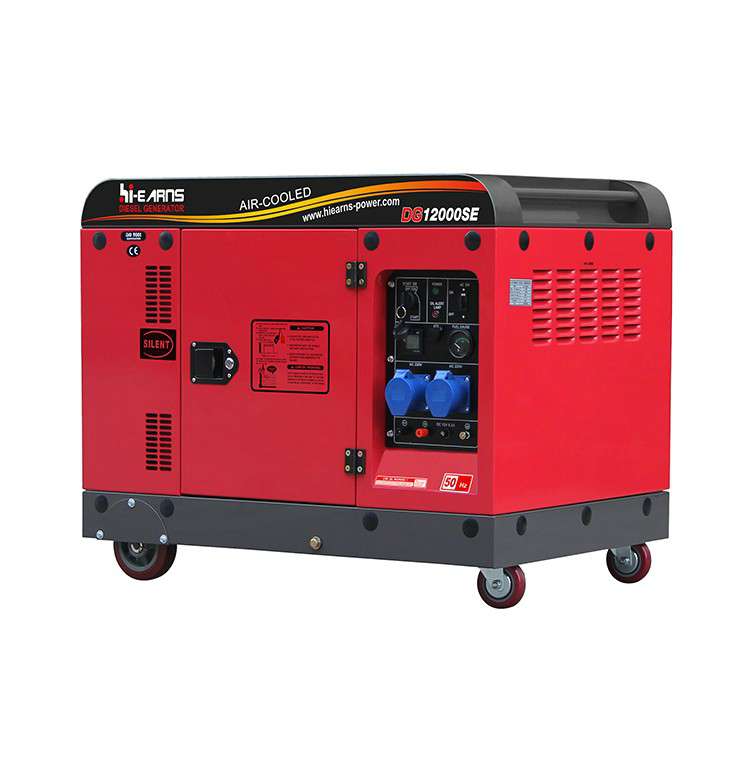

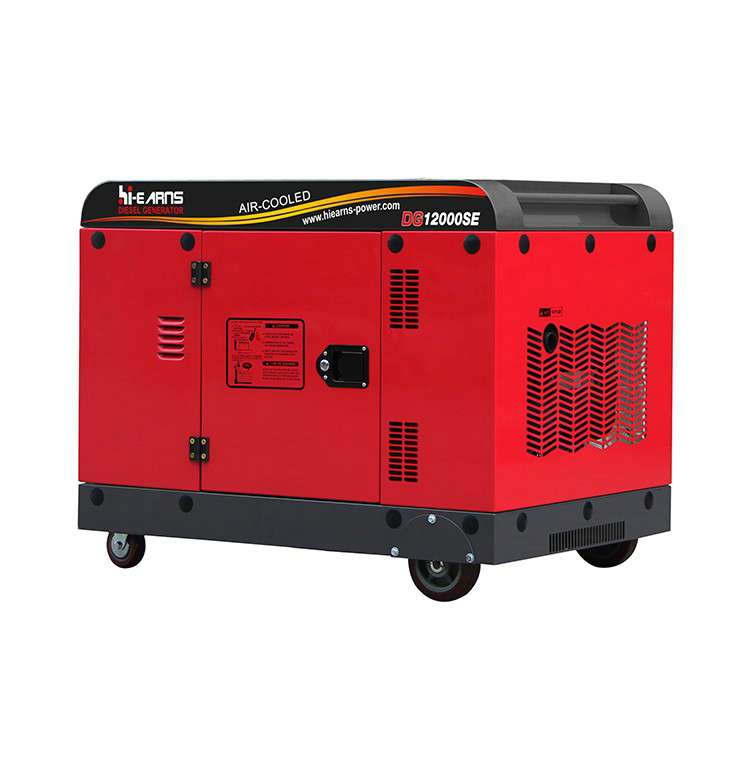

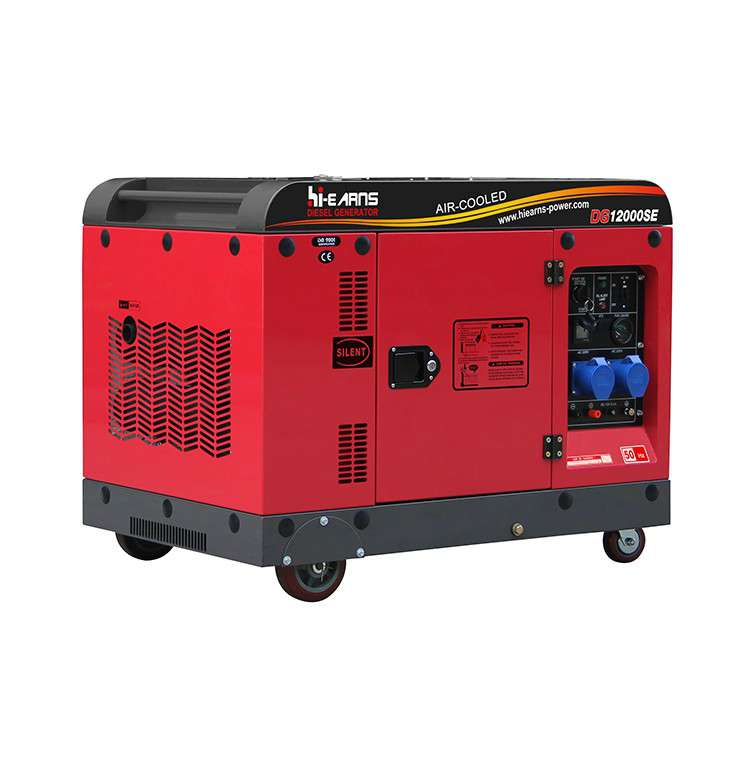

8KW diesel generator with 198FA patent engine


Model DG11000SE 8kw diesel generator
GENERATOR Frequency (HZ) 5060
Max.output (KW) 88
Rated output (KW) 7.57.5
Rated AC voltage (V) 120, 220, 230, 240, 220/380, 230/400, 240/415
Power factor 1
DC output (V) 12V/8.3A
Phase Single phase or Three phase
Alternator type Self-excited, 2-pole alternator
Starting system Electric
Noise level (Dba/7m) 72-75
Fuel tank capacity (L) 30
Continuous running time (hr) 1212
ENGINE Engine model HR198FA
Engine type Single-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore×Stroke (mm)98×84
Fuel consumption rate (g/kw.h) ≤280
Fuel 0# or -10# light diesel oil
Lubrication oil volume (L) 1.65
Combustion system Direct Injection
STANDARD FEATURES Voltmeter YES
AC output socket 2
AC circuit breaker YES
Oil warning light YES
Oil alert YES
OPTIONAL FEATURES DC circuit breaker OPTIONAL
CalculagraphOPTIONAL
Big wheel OPTIONAL
Three phase voltage OPTIONAL
Current meter OPTIONAL
ATSOPTIONAL
Remote control OPTIONAL
DIMENSIONS Packing dimention (LxWxH) (cm) 113×78×86
Gross weight (kgs) 220
20FT loading pcs 30
40HQ loading pcs 96

8kw diesel generator
