CE ISO Standard Air Cooled Diesel Engine Power 4 Inch Water Pump
Brief introduction：
Packaging details:Carton with plastic film
Packaging size:67.5X50.5X63.5cm
Delivery time: 20 days.
One 20FT can load 105 pcs.
One 40HQ can load 222pcs.- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now

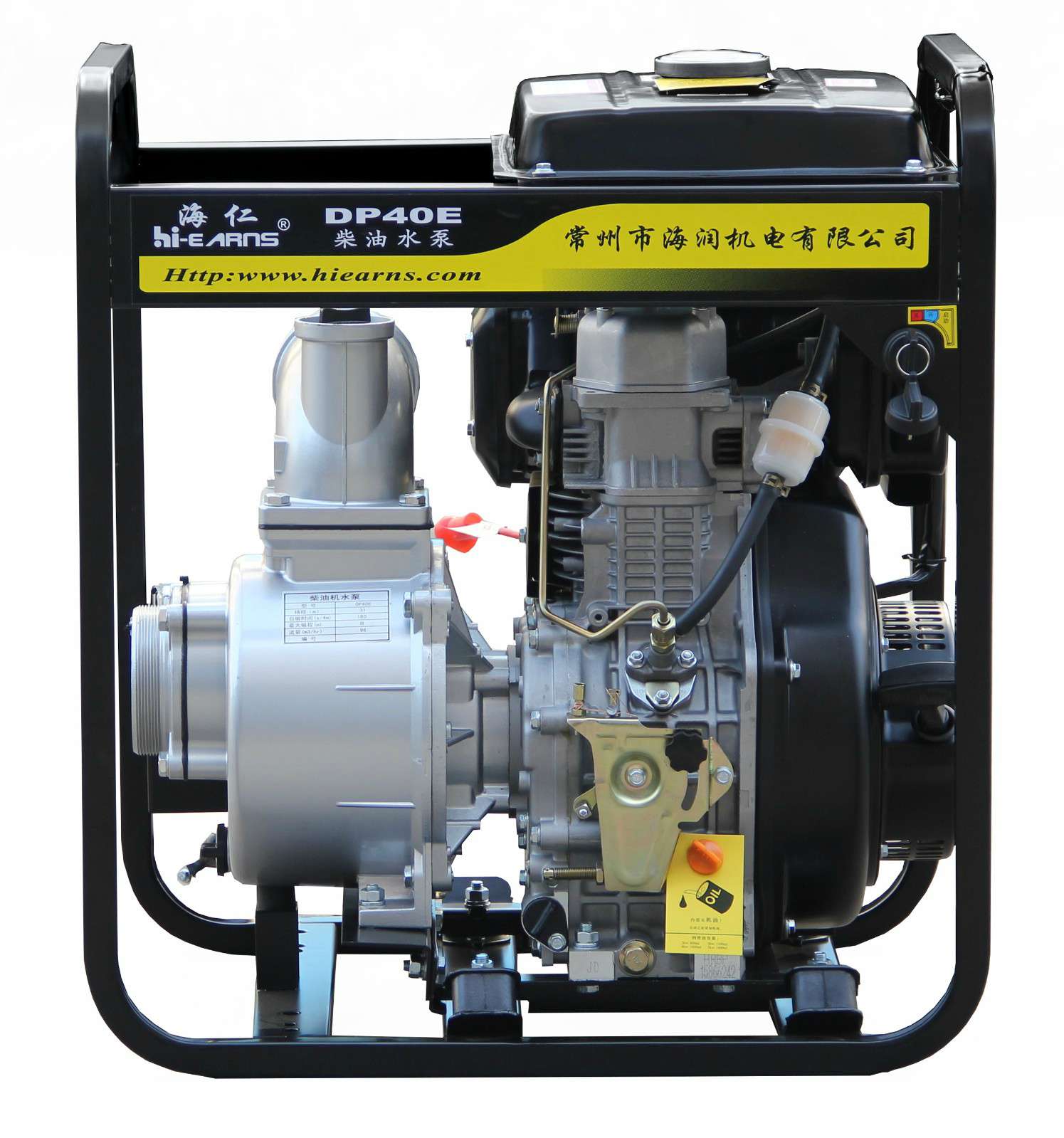

DP40E Diesel water pump
| WATER PUMP | Model | DP40E | |
| Suction,discharge port diameter[mm(in)] | 100(4#39;) | ||
| Cont.head(m) | 31 | ||
| Self-priming time(s/4m) | 180 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 96 | ||
| ENGINE | Engine model | HR186FA | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 285 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
| Displacement(cc) | 418 | ||
| Bore*stroke(mm) | 86*72 | ||
| Starting system | Recoil and Electric | ||
| Fuel tank capacity(L) | 12.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 645x475x750 | |
| Net weight(kg) | 69 | ||
| 20FT | 99 | ||
