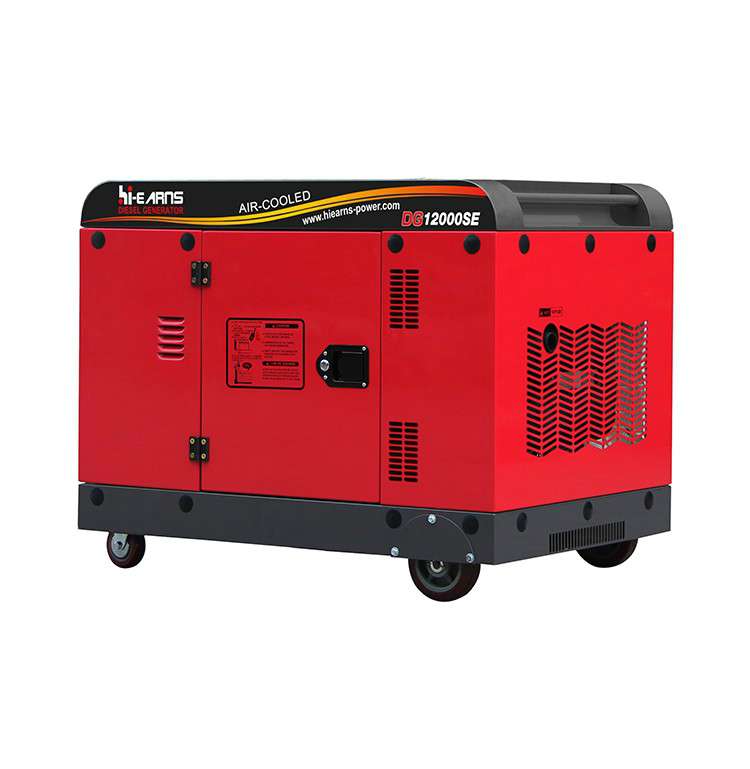

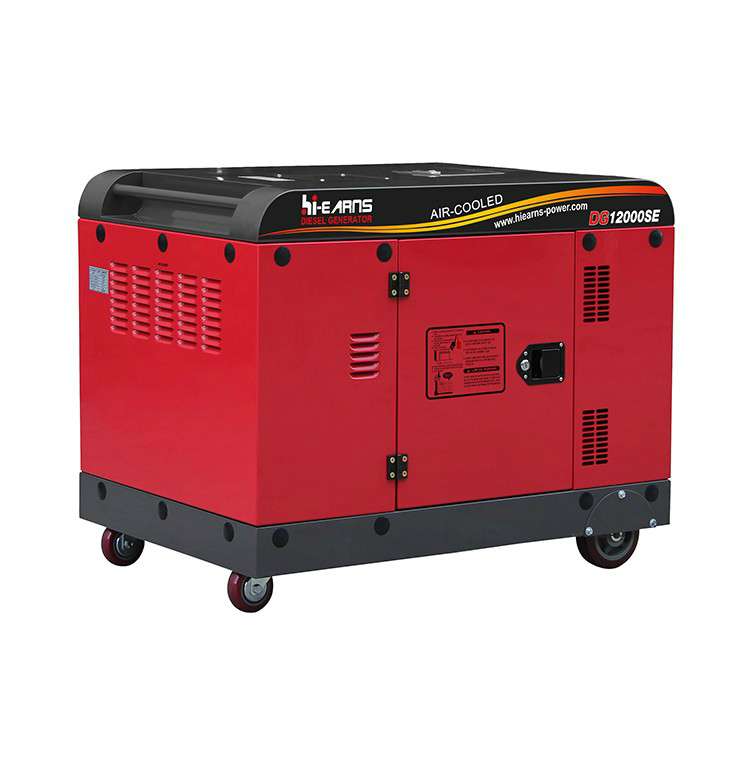

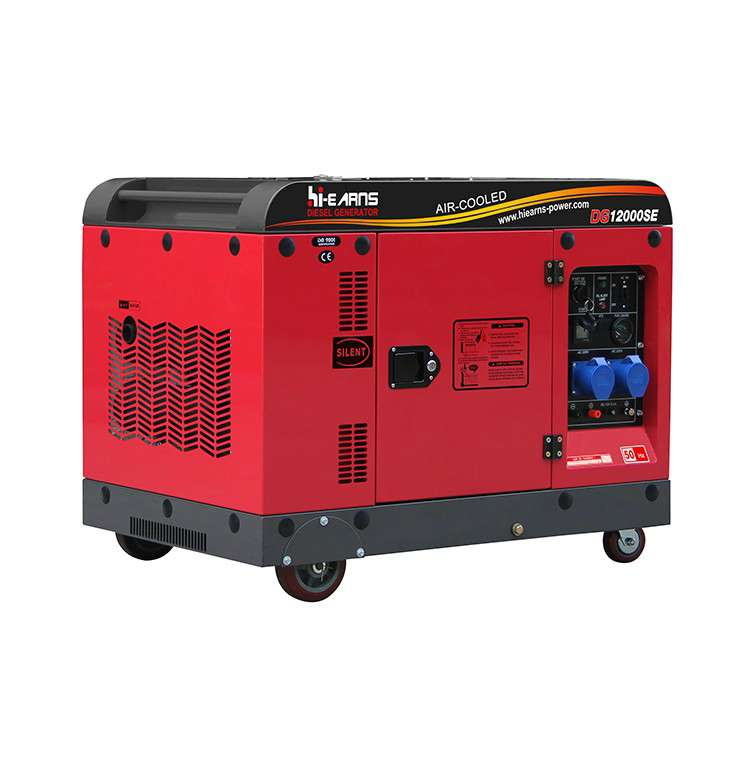

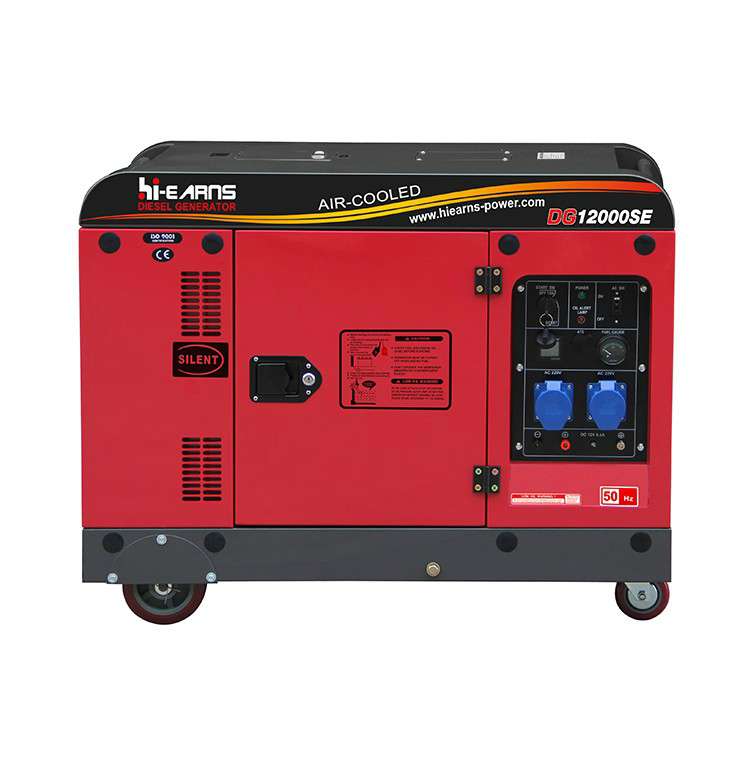

DG11000SE new type single phase diesel generator red color
Brief introduction：
DG11000SE new type single phase diesel generator red color
unique in China, only we can produce in China.
Biggest power of single cylinder engine.- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
DG11000SE new type single phase diesel generator red color
| Model | DG11000SE | ||
| GENERATOR | Frequency (HZ) | 50 | 60 |
| Max.output (KW) | 8 | 8 | |
| Rated output (KW) | 7.5 | 7.5 | |
| Rated AC voltage (V) | 120, 220, 230, 240, 220/380, 230/400, 240/415 | ||
| Power factor | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase or Three phase | ||
| Alternator type | Self-excited, 2-pole alternator | ||
| Starting system | Electric | ||
| Noise level (Dba/7m) | 72-75 | ||
| Fuel tank capacity (L) | 30 | ||
| Continuous running time (hr) | 12 | 12 | |
| ENGINE | Engine model | HR198FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore×Stroke (mm) | 98×84 | ||
| Fuel consumption rate (g/kw.h) | ≤280 | ||
| Fuel | 0# or -10# light diesel oil | ||
| Lubrication oil volume (L) | 1.65 | ||
| Combustion system | Direct Injection | ||
| STANDARD FEATURES | Voltmeter | YES | |
| AC output socket | 2 | ||
| AC circuit breaker | YES | ||
| Oil warning light | YES | ||
| Oil alert | YES | ||
| OPTIONAL FEATURES | DC circuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | ||
| Big wheel | OPTIONAL | ||
| Three phase voltage | OPTIONAL | ||
| Current meter | OPTIONAL | ||
| ATS | OPTIONAL | ||
| Remote control | OPTIONAL | ||
| DIMENSIONS | Packing dimention (LxWxH) (cm) | 113×78×86 | |
| Gross weight (kgs) | 220 | ||
| 20FT loading pcs | 30 | ||
| 40HQ loading pcs | 96 | ||
