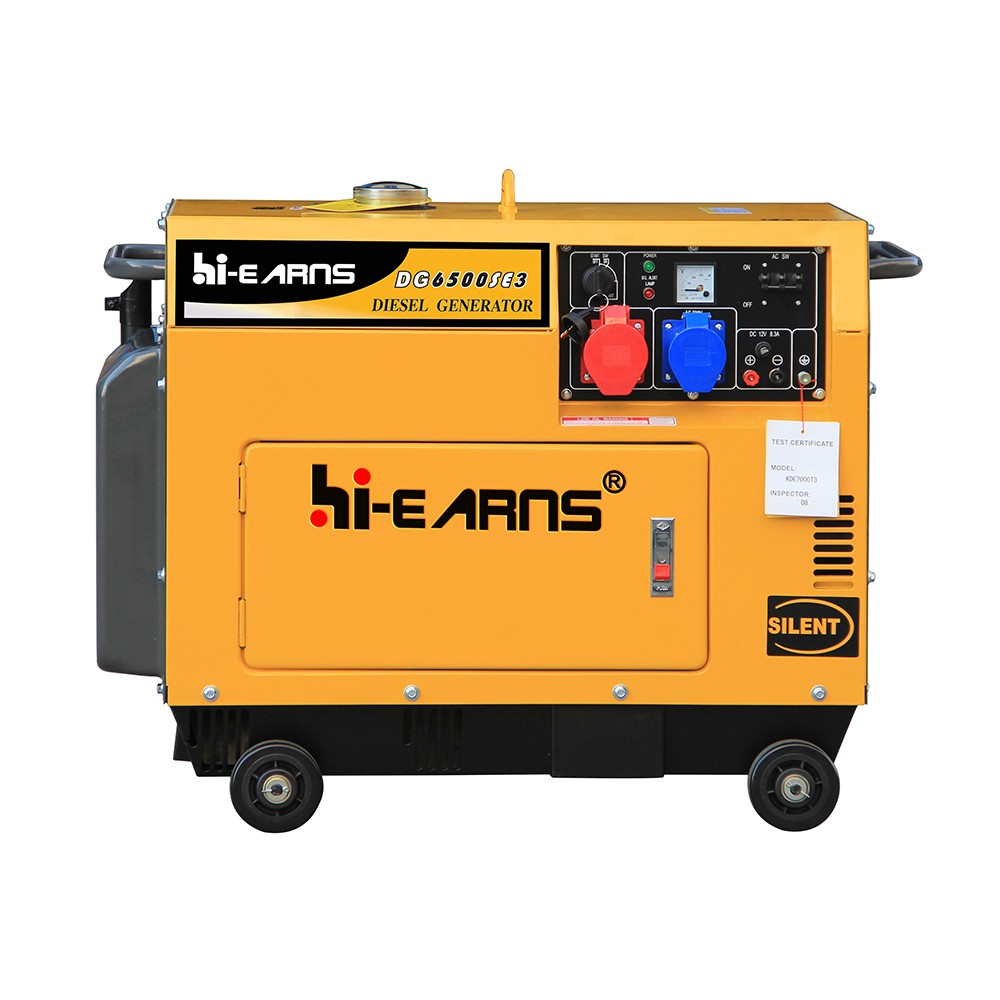

DG6500SE stable type 5000W home use


Model DG6500SE
GENERATOR Frequency (HZ) 5060
Max.output (KW) 55.5
Rated output (KW) 4.65
Rated AC voltage (V) 120, 220, 230, 240, 220/380, 230/400, 240/415
Power factor 1
DC output (V) 12V/8.3A
Phase Single phase or Three phase
Alternator type Self-excited, 2-pole alternator
Starting system Electric
Noise level (Dba/7m) 68-72
Fuel tank capacity (L) 16
Continuous running time (hr) 8.57.8
ENGINE Engine model HR186FA
Engine type Single-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore×Stroke (mm) 86×72
Fuel consumption rate (g/kw.h) ≤280
Fuel 0# or -10# light diesel oil
Lubrication oil volume (L) 1.65
Combustion system Direct Injection
STANDARD FEATURES Voltmeter YES
AC output socket 2
AC circuit breaker YES
Oil warning light YES
Oil alert YES
OPTIONAL FEATURES DC circuit breaker OPTIONAL
CalculagraphOPTIONAL
Big wheel OPTIONAL
Three phase voltage OPTIONAL
Current meter OPTIONAL
ATSOPTIONAL
Remote control OPTIONAL
DIMENSIONS Packing dimention (LxWxH) (cm) 94×56×74
Gross weight (kgs) 158
20FT loading pcs 72
40HQ loading pcs 144
