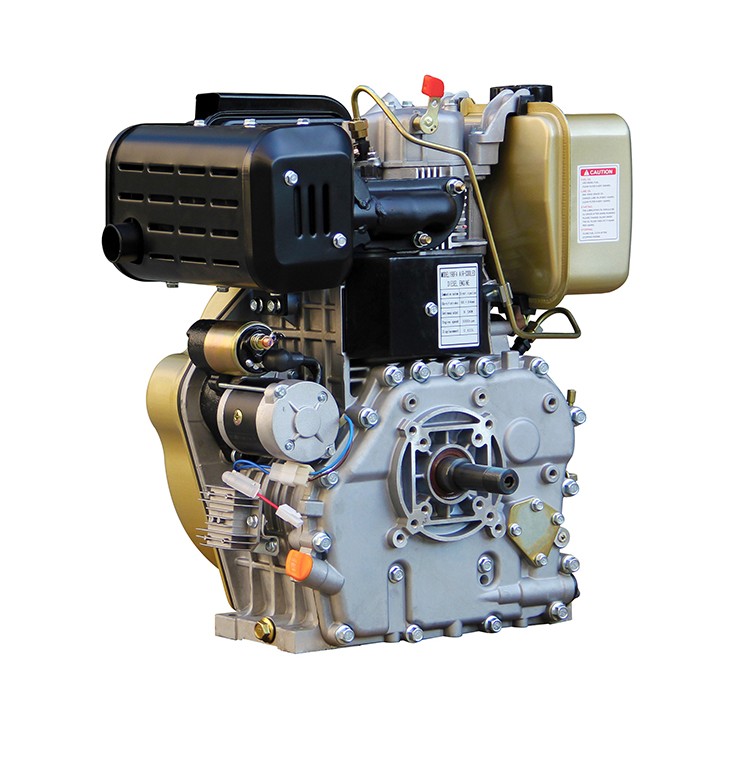

198FA AIR-COOLED DIESEL ENGINE SERIES
Model	HR198FA
Type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
Combustion System	Direct Injection
Bore×Stroke (mm)	98×84
Displacement capacity (cc)	633
Speed (rpm)	3000
Max.output (kw)	9.9
Rated output (kw)	9
Fuel	o# or-10# light diesel oil
Fuel oil tank volume (l)	5.5
Lubricatiom oil volume (l)	1.65
Fuel oil consumption rate (g/kw.h)	275
Starting system	Electric
PTO rotation direction	It is clockwise as viewing from the flywheel end
Dimension (mm)	510x500x590
Gross weight (kg)	57
20FT QTY	176
