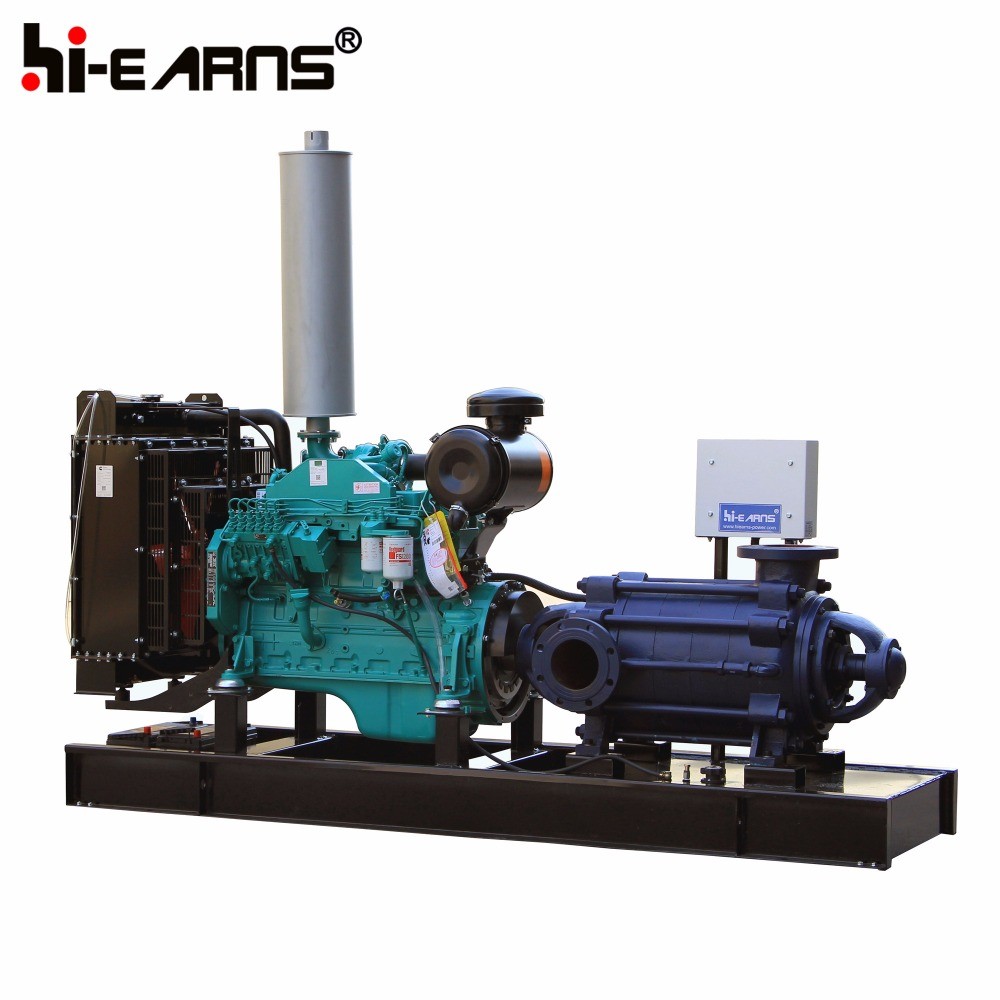

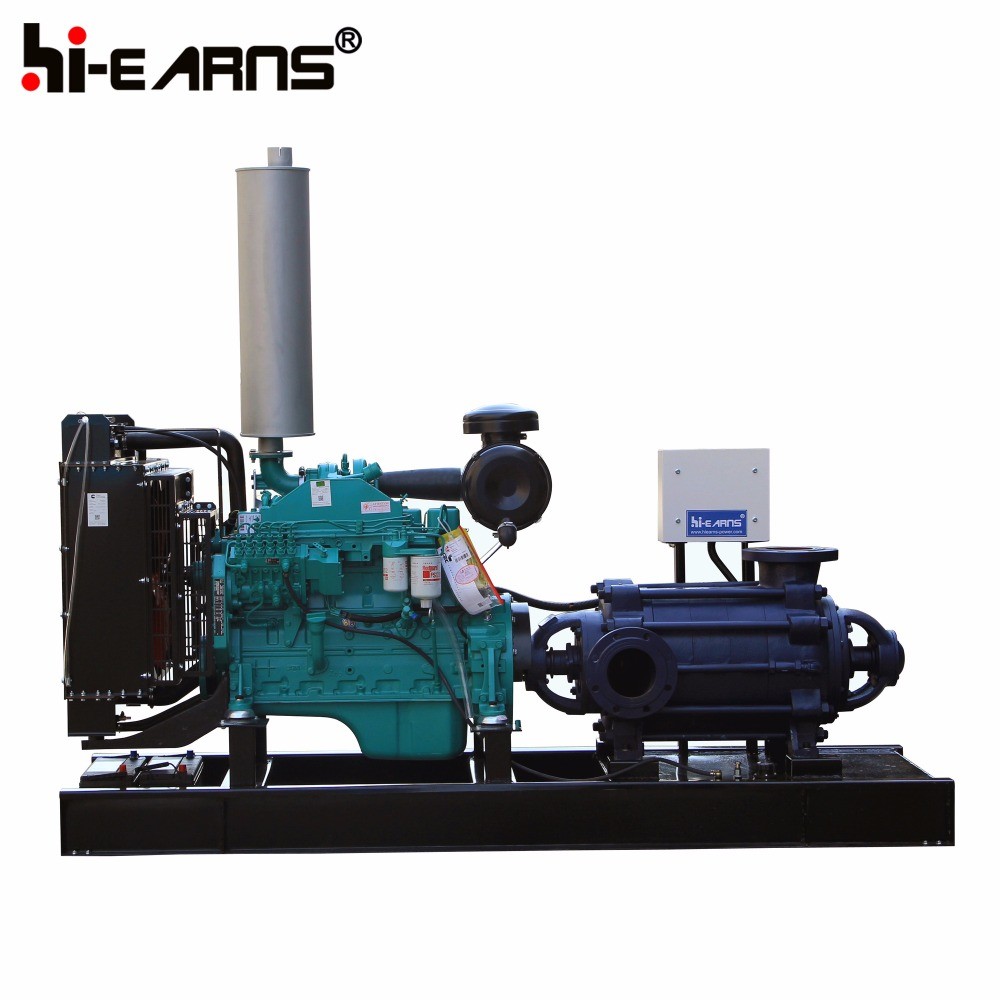

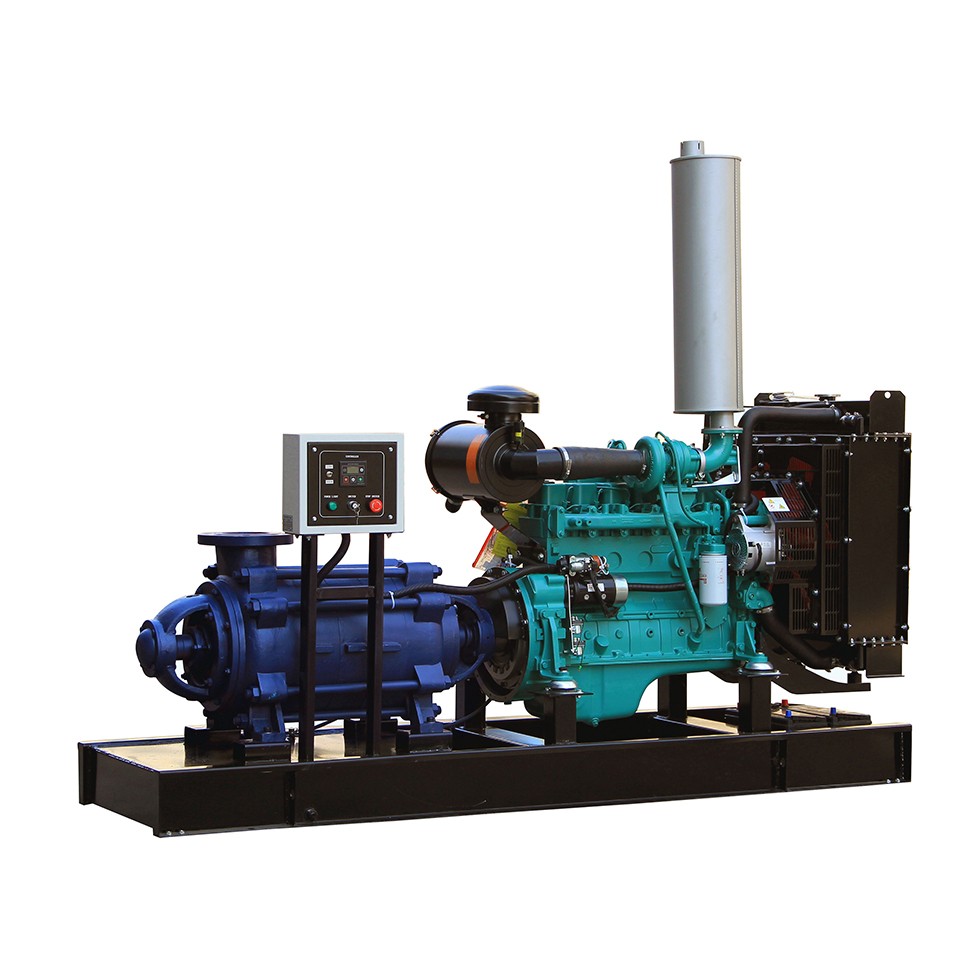

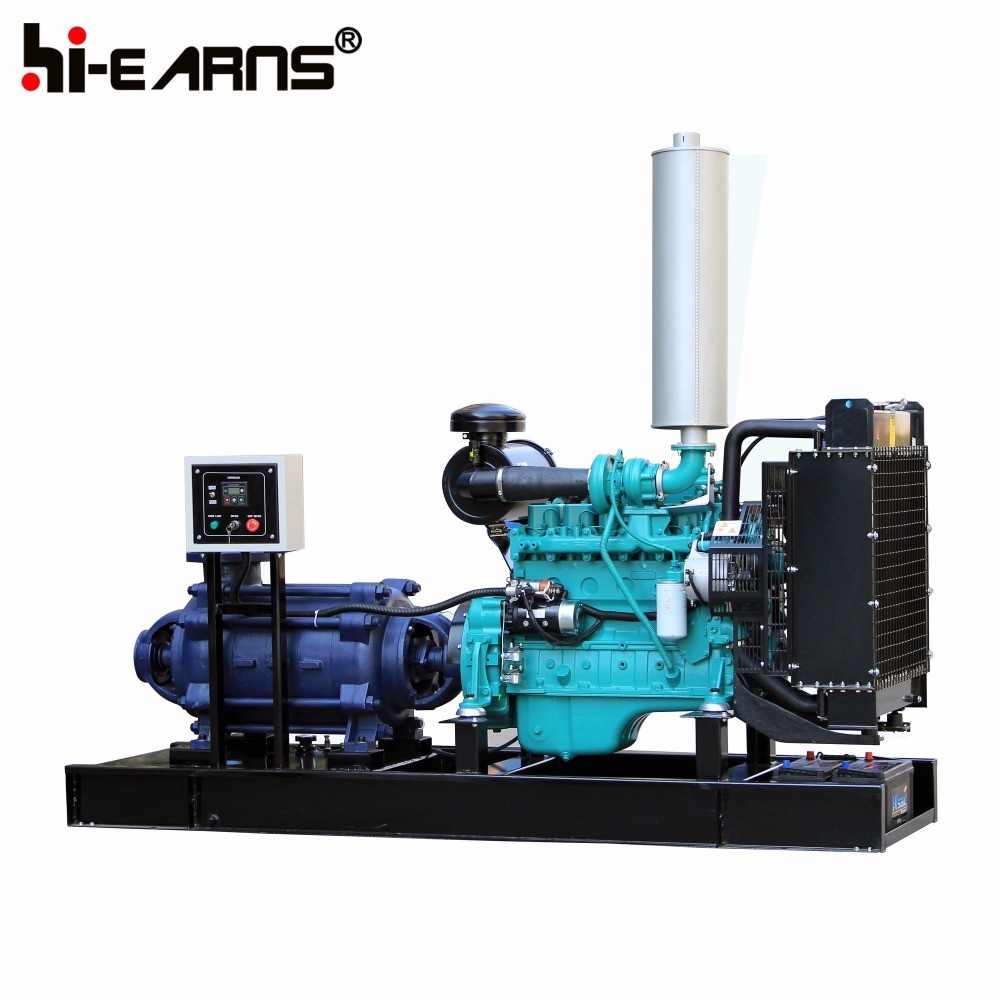

High quality vertical multistage centrifugal pump price
Brief introduction：
made in china
Diesel power
More secure
Carton packing
Colors available
Warranty for one year
E-mail: smart@kubaoya.com
Follow us:
Inquiry Now

Diesel water pump

Model		D150-30*4
WATER PUMP	Type	Multistage centrifugal pump
	Suction,discharge port diameter mm(in)	150(6")
	Cont.head(m)	120
	Cont.capacity(m3/hr)	155
	Stage number	4
	Suction lift	5.5
	Pump speed	1500
	Fuel tank capacity(L)	100
	Battery capacity	24V-100A
	Cashing material	Ductile cast iron
	Shaft material	Ductile cast iron
	Impeller	Ductile cast iron
	Seal method	Stuff sealing
	Connection method	High elastic dowel pin shaft couping
ENGINE	Engine model	Cummins 6BTA5.9-G2
	Rated output	106KW
	Speed(rpm)	1500
	BorexStroke	102x120
	Type	DCEC Cummins 6BTA5.9-G2, 4-cycle
	Cylinder	6
	Air intake system	Turbo charged inter cooled
	Engine speed	1500
ENGINE	Start motor	DC24V
	AC charger	DC24V
	Fuel consumption	200g/kw-hr
	Oil capacity	16L
	Cooling way	Water cooled
	Governor type	Electronic speed control system
	Max water temperature	104℃
	Dry weight(kg)	1650

Advantages

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this reliability

is based on the outstanding design in every aspect and strict Q.C. System.

2. Customer First:

We devote ourselves to develop products to meet customers#39; requirements .Our engineer

develop and design new products for customers.

3. Strict test process before ex-factory:

Every product will be tested twice before ex-factory and our products are 100% ex- factory

pass rate.

4. Low fuel consumption, easy maintenance

5. Certification: CE and ISO

6.Our logo or OEM

IQC

♦ Strict spare parts IQC system, to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.

Automatic Workshop

♦ Modern workshops have advanced production lines and professional knowledge of assembly.

♦ Flow card to record each details carefully.

Packaging Shipping

♦ Strong packaging to ensure safty during transportation.

♦ 7 layer corrugated carton or wooden box packaging for products.

Warranty and Service

Warranty

Guarantee for one year or 500 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons (refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts

for free under the condition of this spare parts are not intentionally damaged.

Company Information

Our company is located at Changzhou of Jiangsu Province and established in 2005 with 25 million RMB registered capital and covers an area of seven acres. Our monthly capacity is more than 6000 sets, and our products are best-selling at home and abroad for many years. With no doubt, Hi-earns Company is one of the most influential manufactures in the field of electrical generators in China.

Our business specializes in water-cooled diesel-powered generator sets, air-cooled diesel-powered generator sets, gasoline-powered generator sets, water pumps, minor agriculture machinery and road machinery equipment. Our company has independently developed 198FA, which belongs to Air-cooled Diesel Engine with its proprietary intellectual property and manufacturing technology.
