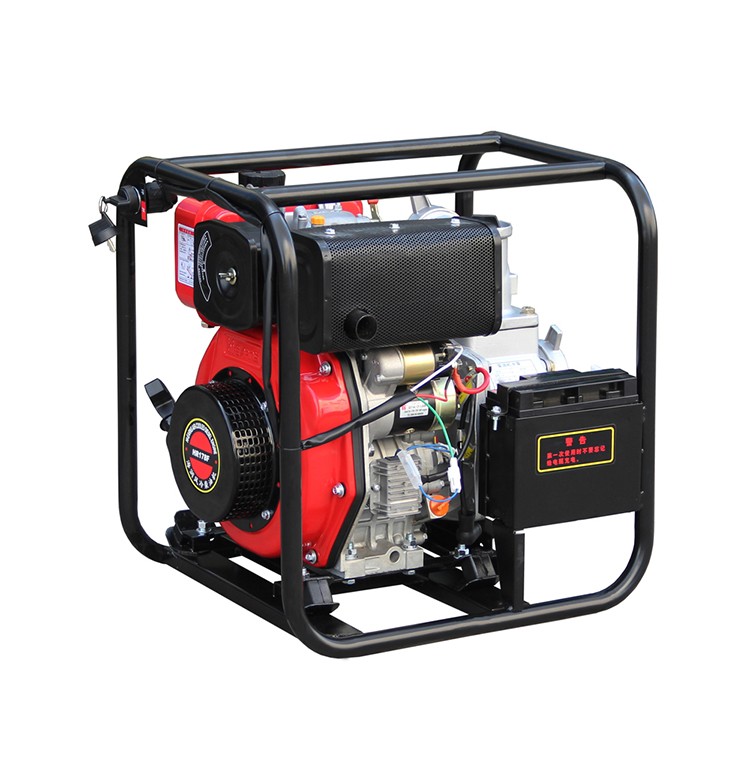

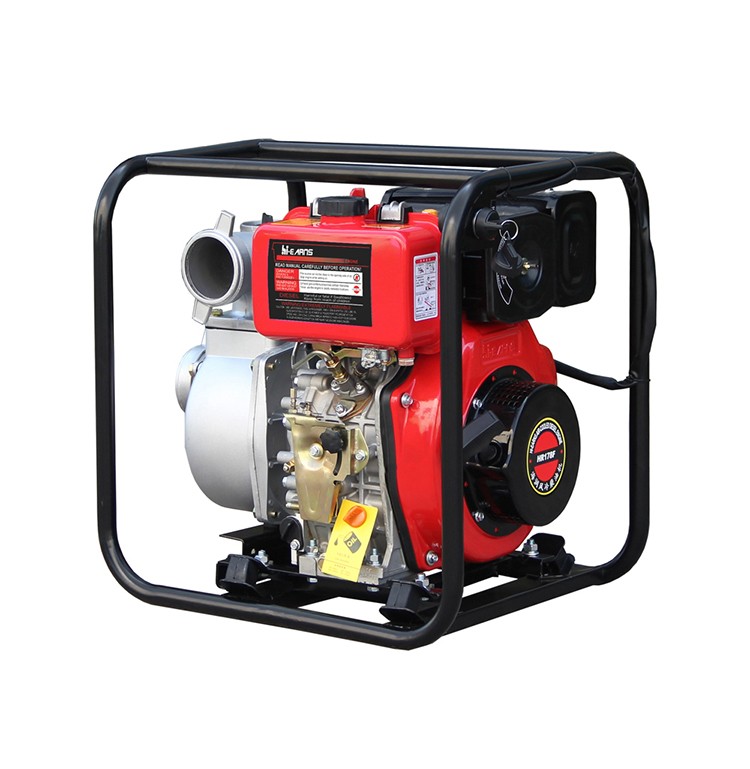

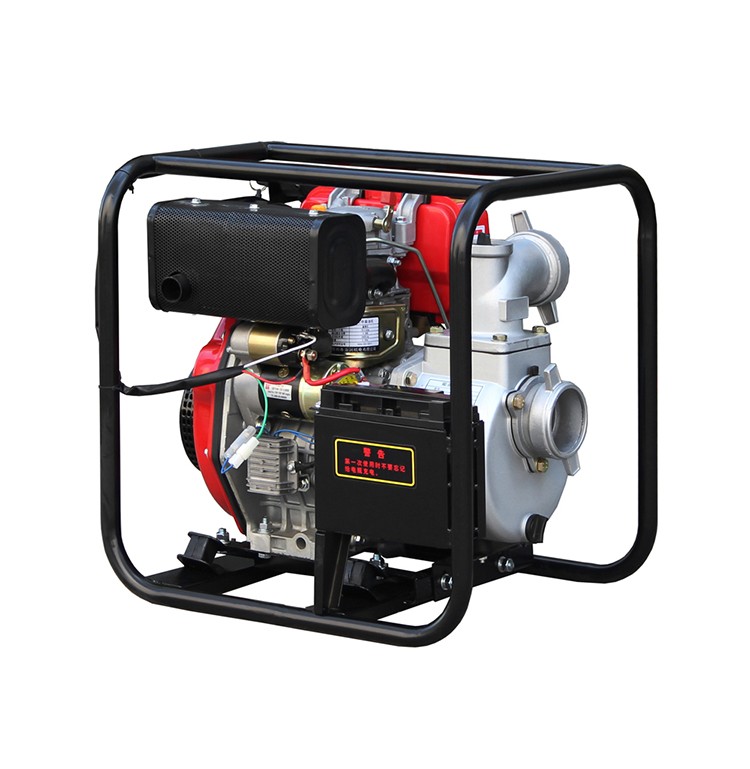

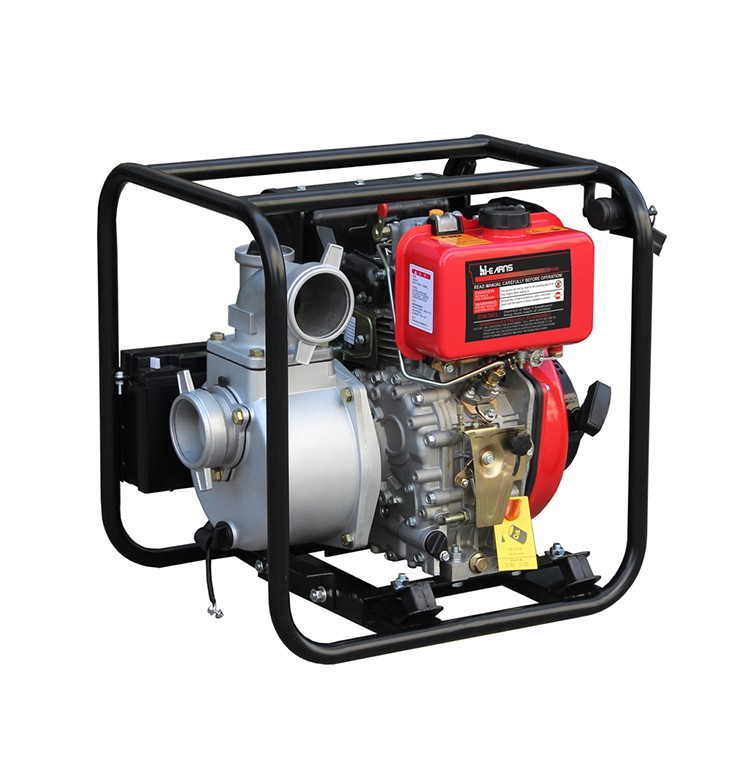

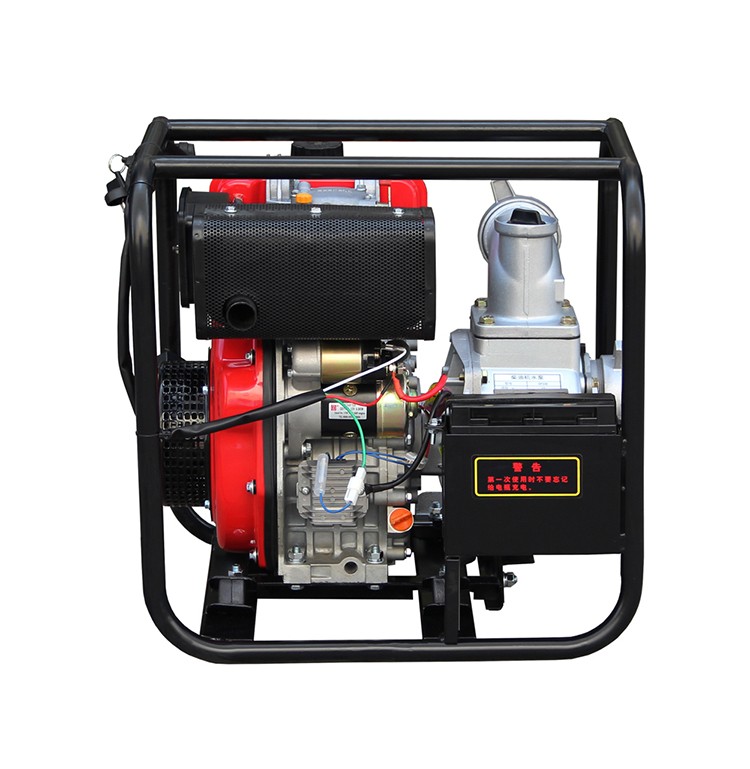

Small diesel electric 3 inch pump water DP30E

WATER PUMPModelDP30E
Suction,discharge port diameter[mm(in)]80(3#39;)
Cont.head(m)28
Self-priming time(s/4m) 120
Max suction head(m)8
Cont.capacity(m³/hr)50
ENGINEEngine modelHR178F
Speed(rpm)3600
Fuel consumption(g/kw.h)295
TypeSingle-cylinder,vertical,4-stroke air-cooled diesel engine

Displacement(cc)

296

Bore*stroke(mm)

78*62

Starting system

Recoil or Electric
Fuel tank capacity(L)3.5
STANDARD FEATURESOil alertyes
Connector of infall,Connecto of outfallyes
Filteryes
Seal ringyes
Hoopyes
DIMENSIONSDimension(L× W× H)(mm)570×475×580
Net weight(kg)48
20FT192
