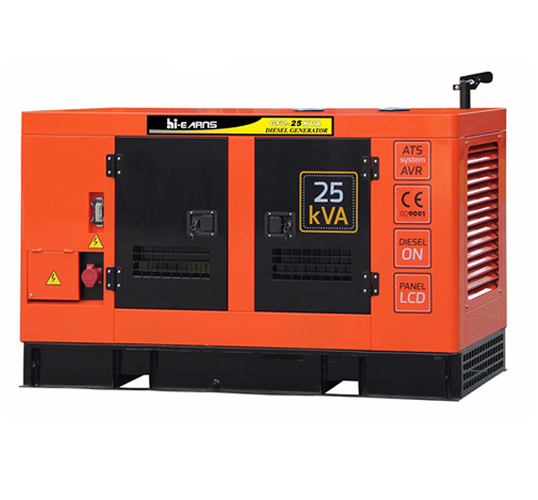

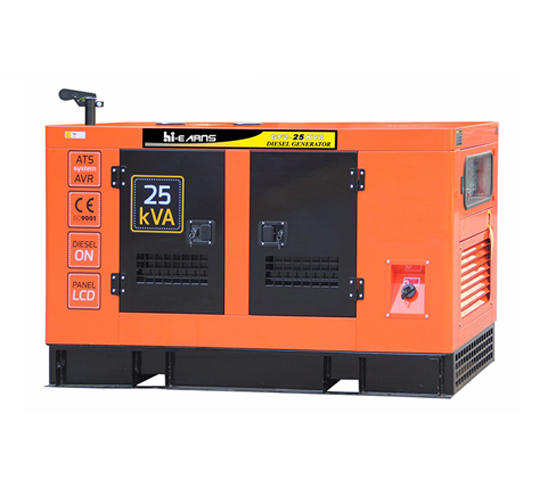

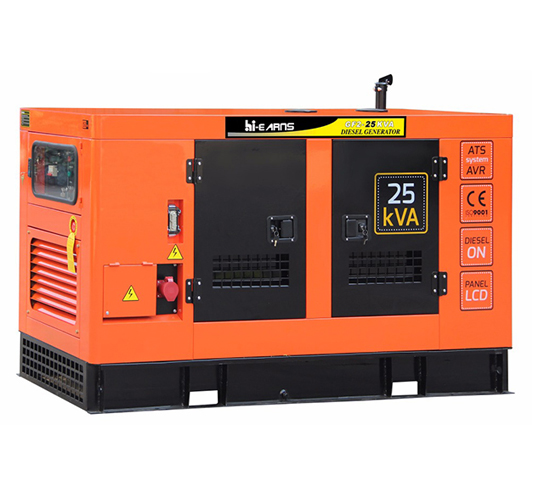

Water-cooled four cylinder 25 kva diesel generator price
Brief introduction：
,diesel engine,electrical engine,diesel generator,Air-Cooled Engine,
E-mail: smart@kubaoya.com
Follow us:
Inquiry Now

25KVA diesel generator

MODEL				GF- 25KVA
Standby Power(50HZ )				22KW / 28KVA
Prime Power(50HZ )				20KW / 25KVA
ENGINE DATA
Manufacturer/Model:				DCEC Cummins 4B3.9-G1,4-cycle
Air Intake System:				Air natural cooled
Fuel System:				A model fuel pump
Cylinder Arrangement:				4 in line
Displacement:				3.9L
Bore and Stroke:				102×120(mm)
Compression Ratio:				16.5:1
Rated RPM:				1500rpm
Max.Standby Power at Rated RPM:				27KW / 36.7HP
Governor Type:				RSV Mechanical(Std) / Electronic(Optional)
Exhaust System
Exhaust Gas Flow:				4.27m3/min
Exhaust Temperature:				410°C
Max Back Pressure:				10kPa
Air Intake System
Max Intake Restriction:				5kPa
Buring Capacity:				1.98m3/min
Intake Flow:				136m3/min
Fuel System
100%(Prime Power) Load:				228 g/Kw.h
75%(Prime Power) Load:				229 g/Kw.h
75%(Prime Power) Load:				240 g/Kw.h
Oil System
Total Oil Capacity:				11L
Oil Consumption:				≤4g/kwh
Engine Oil Tank Capacity:				9.5L
Oil Pressure at Rated RPM:				345kPa
Cooling System
Total Coolant Capacity:				21L
Thermostat:				82-95°C
Max Water Temperature:				104°C
Open Type				Soundproof Type
Overall Size:1800(mm)×750(mm)×1350(mm)				Overall Size:2200(mm)×1000(mm)×1450(mm)
Weight:876kg				Weight:1300kg

Advantages

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.

2. Customer First:

We devote ourselves to develop products to meet customers#39; requirements .Our engineer develop and design new products for customers.

3. Strict test process before ex-factory:

Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.

IQC

♦ Strict spare parts IQC system, to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.

Automatic Workshop

♦ Modern workshops have advanced production lines and professional knowledge of assembly.

♦ Flow card to record each details carefully.

Packaging Shipping

♦ Strong packaging to ensure safty during transportation.

♦ 7 layer corrugated carton or wooden box packaging for products.

Company Information

♦ We are manufactory covering diesel and gasoline engine, diesel generator from 2-500KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on.

Warranty and Service

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
